M700DQ8
Industrial Automation, Rugged Industrial Tablets

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810G) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

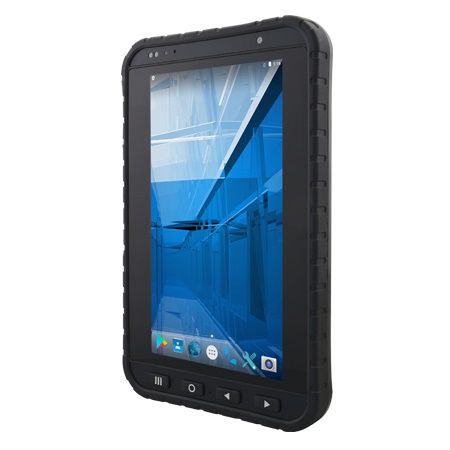

01-Front-right-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Front-right-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-left-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-left-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rear-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rear-M700DQ8 / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets

Order number: 25070002
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25070002
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M700DQ8
mechanics: Rugged Tablet PC
dimensions width: 13,28
dimensions height: 21,24
dimensions depth: 1,9
weight: 0,5
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 7,0
aspect ratio: 16:9
resolution: 1280 x 720
brightness: 650 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Qualcomm
CPU Model: Snapdragon 660
CPU speed: 2,2 GHz
CPU cores: 8
RAM size (MB): 3072
RAM max. Größe (MB: 4096
SSD design: eMCP
SSD capacity: 32
SSD number: 1
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Optional / optional
WWAN: Optional / optional
Camera front: Ja / yes
Camera front resolution: 8MP
Camera rear: Ja / yes
Camera rear resolution: 13MP
Barcode: Optional / optional
USB: 1x USB 3.0 Type C OTG
Card Slot: 1x Micro SD Slot, 1x SD Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Docking connector: 1x 19-pin Docking Connector
controls: 6 Keys: Power, Home, 2x Volume, 2x Funct
operating system: Android 9.0
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 5 ft
voltage input DC: 5 V/DC
external power supply: 5 V/DC, 100 - 240 V/AC, DC plug
battery: 3.7V 5300mAh
