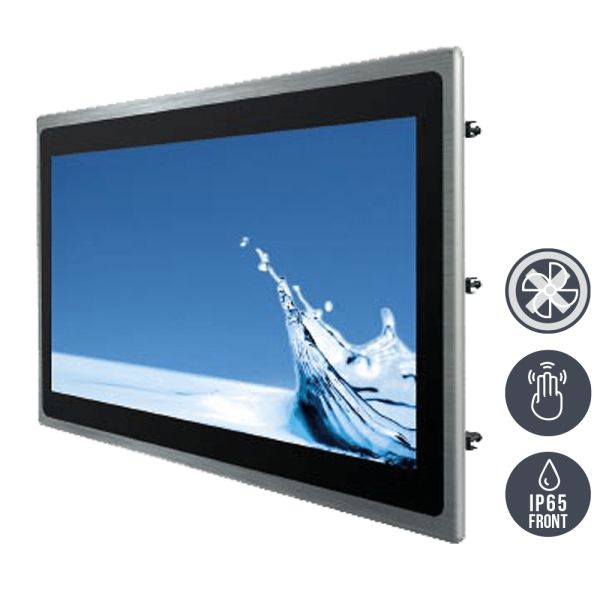

WM 22W-IW32-PMA-MTU
Industrial Automation, Multitouch-Screen, Projected-Capacitive (PCAP), BESTSELLER

Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

WM 22W-IW32-PMA-MTU
WM 22W-IW32-PMA-MTU
Order number: 23221056
gross price: €2,040.85
€1,715.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP / Multi-Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23221056
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: W22IW3S-PPA3
mechanics: Panel Mount
dimensions width: 55,0
dimensions height: 36,0
dimensions depth: 7,0
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: Aluminium eloxiert / anodized aluminum
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 21,5
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI 1.4 (optional)
USB: 2 x USB 3.2 Gen.1 (Type-A)
serial: 1 x RS-232
Audio: 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: All in One
chipset: Intel System on chip
CPU Typ: Core i5
CPU Model: 8265U
CPU 64bit: Ja
CPU speed: 1,60 GHz
CPU cores: 4
CPU socket: FCBGA1528
RAM size (MB): 8192
RAM Number of benches: 1
RAM Typ: DDR4
RAM speed: 2400
Grafik Controller: Intel UHD Graphics for 8th Generation
safety: TPM 2.0
CPU class: Core i3 / i5 / i7
MiniPCIe Slot SSD : 1
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 256
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211-AT + I219-LM
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
operating system: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT / Linux Ubuntu optional
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
