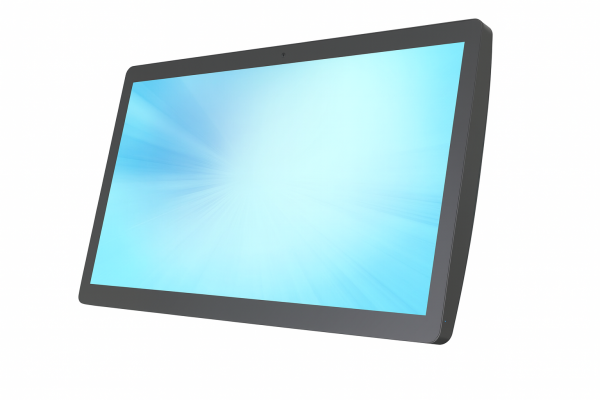

M1-156IC-W11-IC-A2
Industrial Automation, Panel-PC
Multitouch Panel PC for professional use Industrial Panel PC in sturdy plastic housing Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
02-Chassis-Industrie-Panel-PC-M1-215IC-A2.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
27150028
gross price: €1,341.13
€1,127.00 *
gross price: €1,341.13
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 27150028 |
| Manufacturer: | Microtouch |
| Manufacturer item number: | M1-156IC-W11-IC-A2 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 37,8 |
| dimensions height: | 22,73 |
| dimensions depth: | 3,45 |
| weight: | 2,38 |
| Material housing: | Kunststoff / plastic |
| protection front: | IP65 |
| colour: | schwarz / black |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| Display-diagonal (inch): | 15,6 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 400 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| voltage input DC: | 24 V/DC |
| external power supply: | 24 V/DC, 100 - 240 V/AC, DC plug |
| Video: | 1 x HDMI, 1 x USB-C |
| USB: | 4 x USB 3.0 Gen 1 Type A, 2 x USB-C |
| Audio: | 1 x Line-out (3,5 mm), 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Celeron |
| CPU Model: | 7305E |
| CPU 64bit: | Ja |
| CPU speed: | 1,0 GHz |
| CPU cores: | 5 |
| CPU socket: | FCBGA1744 |
| RAM size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DIMM DDR4 |
| Grafik Controller: | Intel UHD Graphics for 12th Generation |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Ja / yes |
| Bluetooth : | Ja / yes |
| Betriebssystem: | Windows 11 IoT LTSC |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 40°C |
| warranty: | 36 Monate / 36 months |
