DL4501
Industrial Automation, Desktop Industrial PC
Industrial PC for professional desktop use Desktop industrial computer in sturdy steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Made in Germany Long-term availability

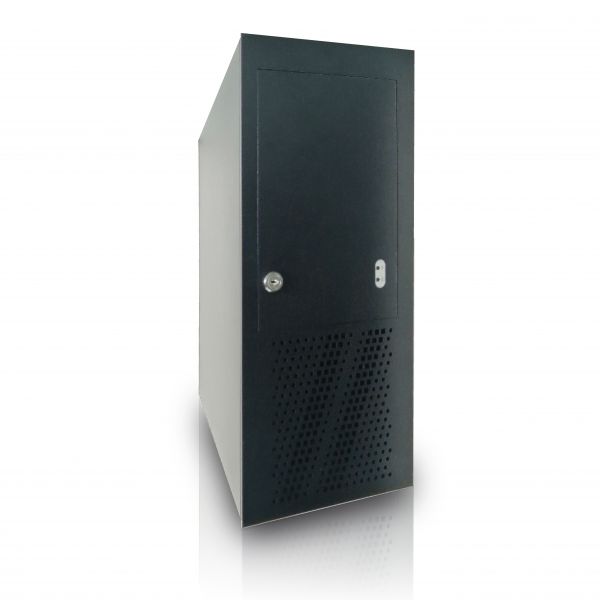

08-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
02-Desktop-Industrie-PC-Rear -DL4501 v4.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
Order number:
14900328
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 14900328 |
| Manufacturer: | TL |
| Manufacturer: | TL Electronic |
| series name: | DeskLine |
| mechanics: | Desktop |
| dimensions width: | 18,0 |
| dimensions height: | 43,34 |
| dimensions depth: | 49,08 |
| weight: | 11,1 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP30 |
| protection device: | IP20 |
| colour: | RAL 9005 Tiefschwarz / Jet black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| cooling: | aktiv / fan cooling |
| Mainboard form factor: | ATX |
| chipset: | Intel H610 |
| CPU Typ : | Core i5 |
| CPU Model : | 13100 |
| CPU 64bit : | Ja |
| CPU speed: | 3,40 GHz |
| CPU cores: | 4 |
| CPU socket: | FCLGA1700 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 65536 |
| RAM Number of benches: | 2 |
| RAM Typ : | DDR4 |
| PCI Express x16 : | 2 |
| PCI Express x1 : | 1 |
| PCI : | 4 |
| Grafik Controller: | Intel UHD Graphics 730 |
| Ethernet Controller: | Intel I219V + Intel I210AT |
| Audio Controller: | Realtek ALC897 |
| safety: | TPM 2.0 |
| connections SATA: | 4 |
| USB internal connections: | 1x USB 2.0 |
| Connections Serial internal: | 4x RS-232 |
| Digital I/O : | Ja / yes |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| CD/DVD-Writer : | Ja / yes |
| controls: | Power On/Off, Kontroll-LEDs |
| Display : | 1x HDMI, 1x VGA, 1x DP |
| USB : | 4x USB 2.0, 4x USB 3.2(2x Gen1, 2x Gen2) |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Mic-In |
| serial: | 2 x RS-232/422/485 |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
