R19IP7T-OFM1
Industrial Automation, no Touch-Screen, Touch-Screen for 1-Finger Operation
Built-in Panel PC for professional use Industrial Panel PC in sturdy open-frame steel sheet design Rear cover protected against contact (cage chassis) Designed for industrial applications in continuous operation Long-term availability

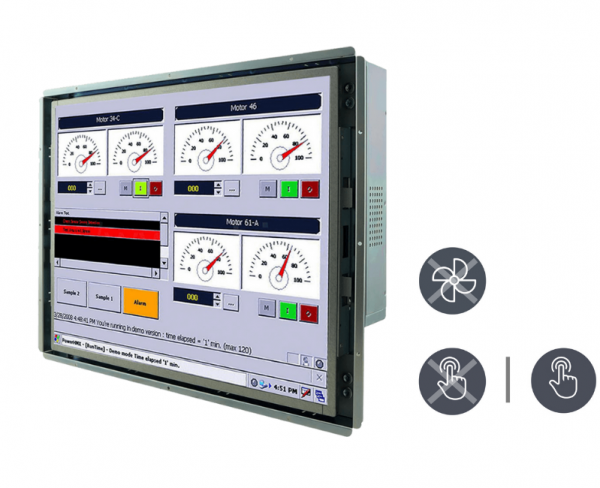

21-Einbau-Industrie-Panel-PC-R19IP7T-OFM1-v1.png / TL Produkt-Welten / Panel-PC / Open Frame (Einbau von Hinten) / Resistive / Glas (optional)
Order number:
23191973
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23191973 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | R19IP7T-OFM1 |
| mechanics: | Open Frame |
| dimensions width: | 44,5 |
| dimensions height: | 35,5 |
| dimensions depth: | 7,1 |
| weight: | 4,8 |
| Material housing: | Stahlblech / steel sheet |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von hinten / back installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 250 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive / Glas (optional) |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| Video: | 1 x DP |
| USB: | 4 x USB 3.2 Gen.1x1 (Type-A) |
| serial: | 2 x RS232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x 2.5 Giga LAN RJ45 |
| CPU Typ: | Pentium |
| CPU Model: | N4200 |
| CPU 64bit: | Ja |
| CPU speed: | 1,1 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1296 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 16384 |
| Grafik Controller: | Intel HD Graphics 505 |
| safety: | TPM 2.0 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | 2 x Intel Ethernet Controller |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
