R15IP7T-PPC3
Industrial Automation, Multitouch-Screen,
Projected-Capacitive (PCAP)
Projected-Capacitive (PCAP)
Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

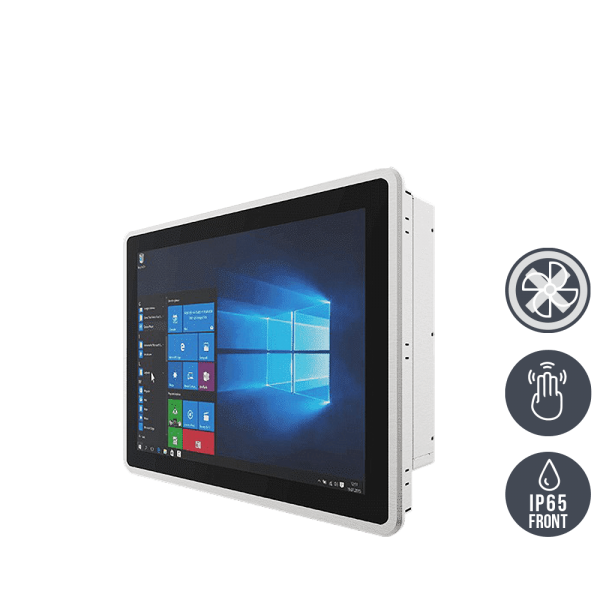

01-PCAP-Multitouch-Industrie-Panel-PC-R15IP7T-PPC3.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23152685
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23152685 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | PP-Serie |
| Manufacturer item number: | R15IP7T-PPC3 |
| mechanics: | Panel Mount |
| dimensions width: | 36,7 |
| dimensions height: | 29,1 |
| dimensions depth: | 7,48 |
| weight: | 4,2 |
| Material housing: | Stahlblech / steel sheet |
| protection front: | IP65 |
| colour: | Aluminium gebürstet / aluminum brushed |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 300 cd/m² |
| contrast: | 2000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| Video: | 1 x DP, 1 x HDMI (optional) |
| USB: | 4 x USB 3.2 Gen.1x1 (Type-A) |
| serial: | 2 x RS232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x Giga LAN RJ45 |
| CPU Typ: | Pentium |
| CPU Model: | N4200 |
| CPU 64bit: | Ja |
| CPU speed: | 1,1 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1296 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 16384 |
| Grafik Controller: | Intel HD Graphics 505 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | 2 x Intel Ethernet Controller |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
