R17IP7T-OFM1_PMA
Industrial Automation, no Touch-Screen, Touch-Screen for 1-Finger Operation
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

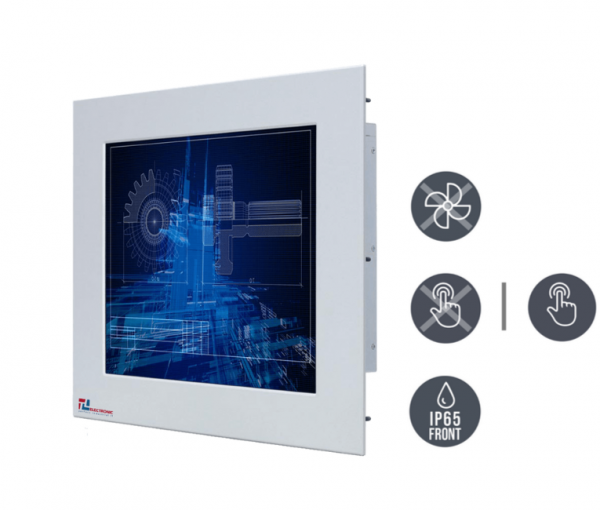

01-Industrie-Panel-PC-R17IP7T-OFM1-IP65-Einbau-v1.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Resistive / Glas (optional)
Order number:
23171908
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23171908 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | R17IP7T-OFM1_PMA |
| mechanics: | Panel Mount |
| dimensions width: | 48,3 |
| dimensions height: | 39,9 |
| dimensions depth: | 7,9 |
| weight: | 5,5 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 17,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 350 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive / Glas (optional) |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| VGA: | 1 x VGA (optional) |
| HDMI: | 1 x HDMI 1.4 (optional) |
| DisplayPort: | 1 x DP 1.2 |
| USB: | 4 x USB 3.2 Gen.1x1 (Type-A) |
| serial: | 2 x RS232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x Giga LAN RJ45 |
| CPU Typ: | Pentium 4 |
| CPU Model: | N4200 |
| CPU 64bit: | Ja |
| CPU speed: | 1,1 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1296 |
| Grafik Controller: | Intel HD Graphics 505 |
| safety: | TPM 2.0 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | 2 x Intel Ethernet Controller |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
