CL2501 - Q870
Industrial Automation, 7 Slots (ATX Mainboard)
19-inch Industrial PC for professional use Industrial computer in sturdy steel sheet housing Aluminium front with lockable door Mainboard version (ATX) 7 x expansion slot (low profile) 2 x 80 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Made in Germany Long-term availability

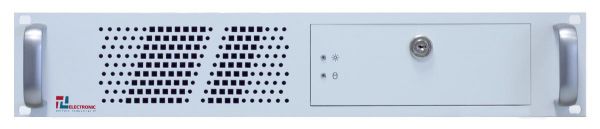

02-19-Zoll-Rack-Industriecomputer-Front-CL2501.jpg / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
01-19-Zoll-Rack-Industrie-PC-CL2501.jpg / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
03-19-Zoll-Rack-Industriecomputer-Front2-CL2501.jpg / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
05-19-Zoll-Industrie-PC-ATX-Mainboard-CL2501.png / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
Order number:
11200256
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 11200256 |
| Manufacturer: | WM |
| Manufacturer: | TL Electronic |
| series name: | ClassicLine |
| mechanics: | 19" Rack Mount |
| dimensions width: | 48,3 |
| dimensions height: | 8,8 |
| dimensions depth: | 49 |
| weight: | 12 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| controls: | 2 Keys: Power, Reset |
| cooling: | aktiv / fan cooling |
| Bauhöhe: | 2HE |
| Mainboard form factor: | ATX |
| chipset: | Intel Q870 |
| CPU Typ : | Core Ultra 5 |
| CPU Model : | 245K |
| CPU 64bit : | Ja |
| CPU speed: | 3,6 GHz |
| CPU cores: | 14 |
| CPU socket: | FCLGA1851 |
| RAM size (MB): | 16384 |
| RAM max. size (MB): | 196608 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR5 |
| PCI Express x16 : | 2 |
| PCI Express x4 : | 4 |
| PCI : | 1 |
| Grafik Controller: | Intel Graphics |
| Ethernet Controller: | Intel i210AT + i226V + i226LM |
| Audio Controller: | Realtek ALC897 |
| safety: | TPM 2.0 |
| connections SATA: | 4 |
| USB internal connections: | 4x USB 3.2 Gen1, 3x USB 2.0 |
| Connections Serial internal: | 4 x RS-232, 1 x RS-232/422/485 |
| Digital I/O : | Ja / yes |
| SSD design: | M.2 |
| SSD max. number: | 2 |
| SSD capacity (GB): | 250 |
| USB : | 2 x USB 2.0 |
| Display : | 2x DP 1.4, 1x HDMI 2.1 |
| USB : | 6x USB 3.2 Type-A, 1x USB 3.2 Type-C |
| LAN : | 3x RJ45 - 10/100/1000/2500 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 1 x RS-232/422/485 |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 500 Watt ATX, intern |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 60°C |
| warranty: | 24 Monate / 24 months |
