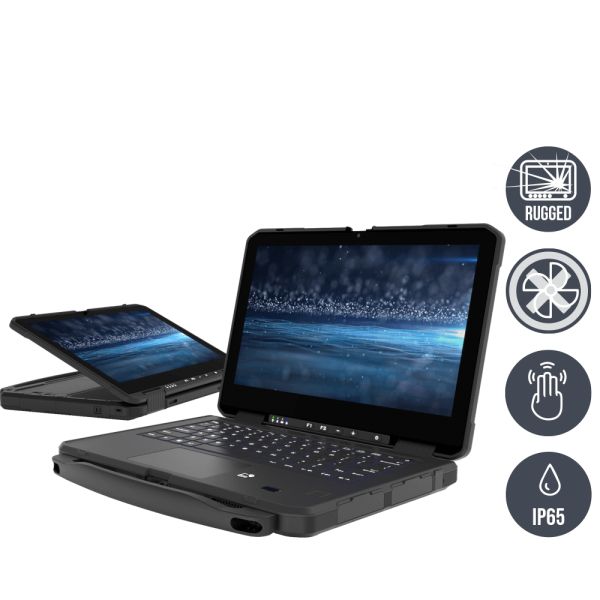

L140TG-4
Industrial Automation, Rugged Industrial Laptop

Rugged Laptop for professional use Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

01-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
01-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
02-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
02-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
03-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
03-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
04-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
04-L140TG-4 / TL Produkt-Welten / Mobile Computing / Rugged Laptop
Order number: 25140000
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • 2-in-1 (Laptop und Tablet)
  • Widerstandsfähige Bauform
  • Schlankes Design
  • IP65 wasser- und staubdicht
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25140000
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Laptop
Manufacturer item number: L140TG-4
mechanics: Rugged Laptop
dimensions width: 34,0
dimensions height: 23,0
dimensions depth: 3,8
weight: 2,55
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 14,0
resolution: 1920 x 1080
brightness: 700 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
CPU Typ: Core i5
CPU Model: 1135G7
CPU speed: 2,40 GHz
CPU cores: 4
RAM size (MB): 8192
RAM max. Größe (MB: 32768
RAM Typ: SO-DDR4
RAM speed: 2133
SSD design: M.2
SSD capacity: 256
SSD number: 1
safety: TPM 2.0 und Kensington Lock
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n
Bluetooth: Ja / yes
WWAN: Ja / yes
WWAN-Standard: 4G, LTE
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
RFID: Optional / optional
Finger Print: Optional / optional
Video: 1x HDMI 2.0b
USB: 3x USB 3.0 (Type A), 1x USB 3.0 (Type C)
serial: 1x RS-232 (DB9)
LAN: 1x RJ45 - 10/100/1000 Mbps
Card Slot: 1x Nano SIM card slot
Audio: 1x Audio Jack (Mic in/Line out)
Power: 1x 19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 5 Keys: 1x Power, 2x Volume, 2x Function
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.8, 3 ft
voltage input DC: 19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 10.8V 2400 mAh Li-Polymer Battery (3S1P)
battery Hot-Swap: Ja / yes
