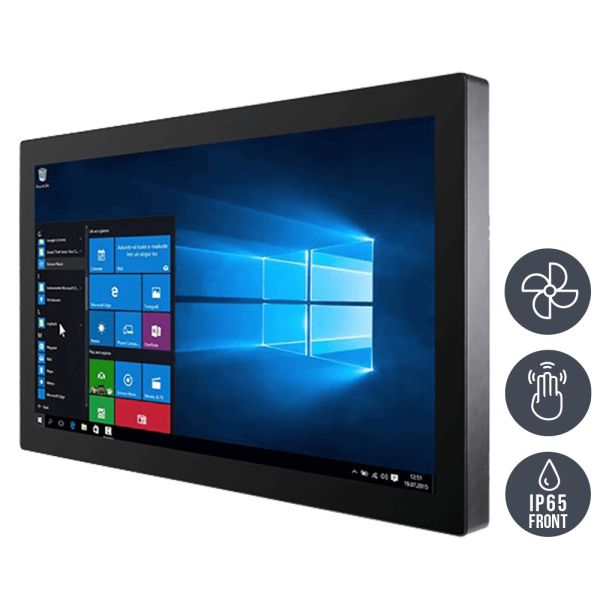

WM 43W-IK70-CH - i3
Industrial Automation, Multitouch-Screen, Projected-Capacitive (PCAP), Panel-PC
Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet housing Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface
01-W43IK7T-PCA3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23420061
gross price: €4,575.55
€3,845.00 *
gross price: €4,575.55
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 23420061 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | MTU-Serie |
| Manufacturer item number: | W43IK7T-PCA3 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 102,88 |
| dimensions height: | 61,7 |
| dimensions depth: | 6,43 |
| weight: | 25,0 |
| Material housing: | Stahlblech / steel sheet |
| protection front: | IP65 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 200 x 200 mm, 400 x 400 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 43,0 |
| resolution: | 1920 x 1080 |
| brightness: | 400 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 24 V/DC |
| DisplayPort: | 1 x DisplayPort |
| USB: | 4 x USB 3.0 (Type-A) |
| serial: | 1 x RS-232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| chipset: | Intel H170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7100T |
| CPU 64bit: | Ja |
| CPU speed: | 3,40 GHz |
| CPU cores: | 2 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 4096 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I211-AT + I219-LM |
| operating system: | Windows 10 Professional 64-Bit |
| operating-system language version: | english |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
