EL1191-AM
Industrial Automation, Embedded PC

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability

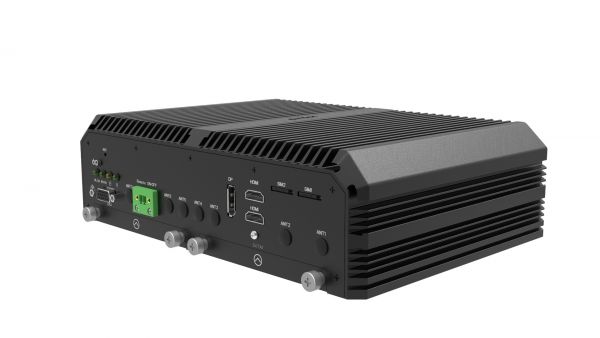

01-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-front-top-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-front-top-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-rear-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC (Brackets optional erhältlich)
04-rear-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC (Brackets optional erhältlich)
Order number: 15000584
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • werkzeugloser HDD Zugang
  • Temperaturbereich -40°C - +70°C
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 15000584
Manufacturer: PT
Matchcode manufacturer: nein
Manufacturer: Protech
series name: EmbeddedLine
Manufacturer item number: IV-Z318
mechanics: Embedded-PC
dimensions width: 25,95
dimensions height: 7,2
dimensions depth: 18,48
weight: 3,2
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP20
protection device: IP20
colour: schwarz / black
VESA-Mounting Interface: VESA 75 x 75 mm
wall mounting: Ja / yes
cooling: lüfterlos / fanless
DIN-Rail: Optional / optional
chipset: Intel System on chip
CPU Typ : Core i5
CPU Model : 1145GRE
CPU 64bit : Ja
CPU speed: 1,50 GHz
CPU cores: 4
CPU socket: FCBGA1449
CPU alternative option 1: Core i3-1115GRE
CPU alternative option 2: Core i7-1185GRE
RAM size (MB): 4096
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ : SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
safety: TPM 2.0
connections SATA: 2
Mini-PCIe-slot: 2
HDD design: 2.5"
HDD max. number: 2
HDD connection: SATA
MiniPCIe Slot SSD : 3
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 120
RAID-System : Ja / yes
SIM Card Slot : Ja / yes
Display : 2x DisplayPort, 1x HDMI
USB : 2x USB 3.2, 2 x USB 2.0
LAN : 4x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In
serial: 2 x RS-232, 2 x RS232/422/485
Digitale I/O : 1 x 4in / 4out
controls: Power On/Off, Reset
voltage input DC: 9-48 V/DC
operating-system support: Windows 10 IoT / Ubuntu 20.14
operating temperatur min.: -40°C
operating temperatur min.: 70°C
warranty: 24 Monate / 24 months
