W10L100-GCH2
Multitouch-Screen, Projected-Capacitive (PCAP)
Rugged industrial LCD for stationary and vehicle-mounted use Industrial monitor in sturdy steel sheet housing Robust aluminium front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

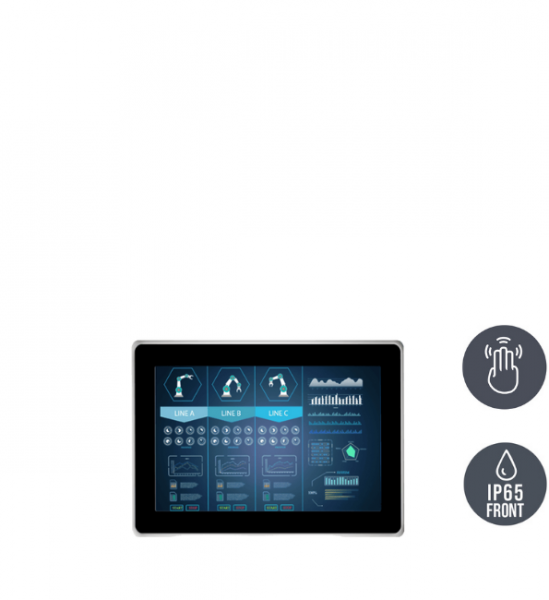

01-Chassis-Industriemonitor-W10L100-GCH2.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

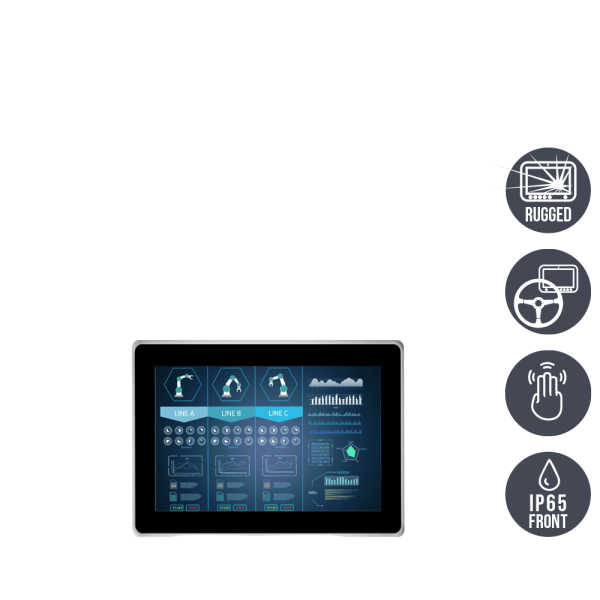

02-Chassis-Industriemonitor-W10L100-GCH2 // TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
51000353
gross price: €523.60
€440.00 *
gross price: €523.60
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 51000353 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | GC-Serie |
| Manufacturer item number: | W10L100-GCH2 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 26,33 |
| dimensions height: | 17,2 |
| dimensions depth: | 4,02 |
| Material housing: | Aluminium / aluminium |
| protection front: | IP65 |
| colour: | schwarz / black |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 800 |
| brightness: | 350 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
