R19IP3S-GCM1
Multitouch-Screen, Projected-Capacitive (PCAP)

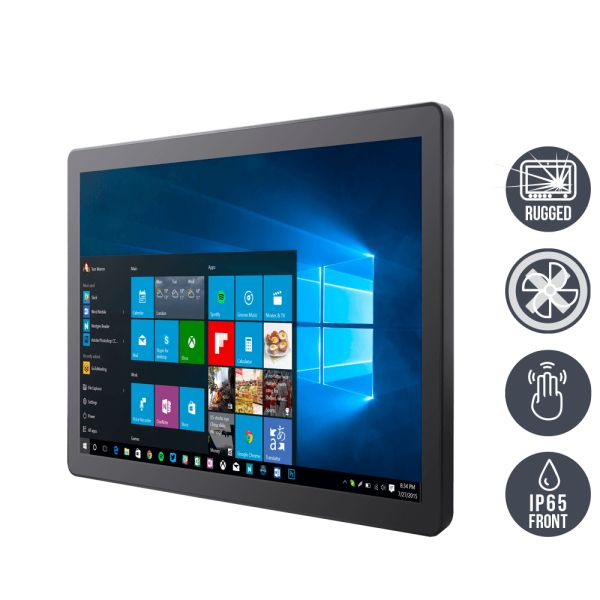

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

01-Chassis-Industrie-Panel-PC-R19IP3S-GCM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Chassis-Industrie-Panel-PC-R19IP3S-GCM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23191834
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23191834
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: GC-Serie
Manufacturer item number: R19IP3S-GCM1
mechanics: Chassis (VESA-Mounting)
dimensions width: 44,5
dimensions height: 37,0
dimensions depth: 5,1
Material housing: Stahlblech / steel sheet
Material Front : Kunststoff / plastic
protection front: IP65
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 250 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
USB: 2 x USB 3.0
serial: 1 x RS-232/422/485
Audio: 2 x Speaker
LAN: 1x RJ45 - 10/100/1000 Mbps
CPU Typ: Pentium
CPU Model: N4200
CPU 64bit: Ja
CPU speed: 1,1 GHz
CPU cores: 4
CPU socket: FCBGA1296
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics 505
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 64
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Ethernet Controller : 2 x Intel 2.5Gbps Ethernet Controller
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
