WM 15W-IB70-PMA-MTU
Multitouch-Screen,
Projected-Capacitive (PCAP)

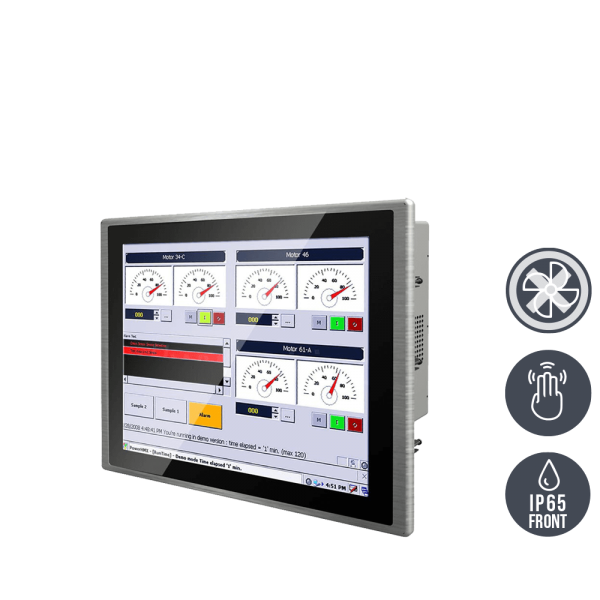

Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

01-PCAP-Multitouch-Industrie-Panel-PC-W15IB7T-PPA4.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-PCAP-Multitouch-Industrie-Panel-PC-W15IB7T-PPA4.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23152523
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23152523
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: W15IB7T-PPA4
mechanics: Panel Mount
dimensions width: 41,5
dimensions height: 27,5
dimensions depth: 8,1
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: Aluminium gebürstet / aluminum brushed
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 300 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
USB: 1 x USB 3.2 Gen1x1, 3 x USB 2.0
serial: 2 x RS232
Audio: Line-Out, Line-In, Mic in
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
chipset: Intel System on chip
CPU Typ: Celeron
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 2
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
safety: TPM 2.0
CPU class: Atom / Celeron
Expansion slots: 2 x mPCIe
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
