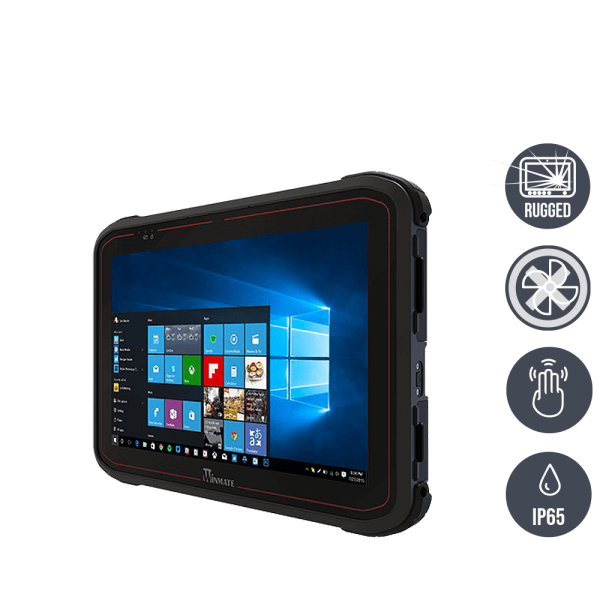

S101TG
Industrial Automation, Rugged Industrial Tablets

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability

01-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Rugged-Tablet-PC-S101TG / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets

Order number: 25100067
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25100067
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: S101TG
mechanics: Rugged Tablet PC
dimensions width: 27,2
dimensions height: 19,2
dimensions depth: 2,5
weight: 1,1
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 10,1
aspect ratio: 16:10
resolution: 1920 x 1200
brightness: 800 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Core i5
CPU Model: 1135G7
CPU speed: 2,40 GHz
CPU cores: 4
RAM size (MB): 4096
RAM max. Größe (MB: 16384
RAM Typ: SDRAM-DDR4
SSD capacity: 128
SSD number: 1
WLAN: Ja / yes
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Video: 1x Mirco HDMI (optional)
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
Card Slot: 1x Micro SDXC Slot, 1x Nano SIM Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 3 Keys: 1x Power, 2x Function
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.8, 3 ft
voltage input DC: 19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 11.4V, 3500 mAh Battery (3S1P)
battery Hot-Swap: Optional / optional
