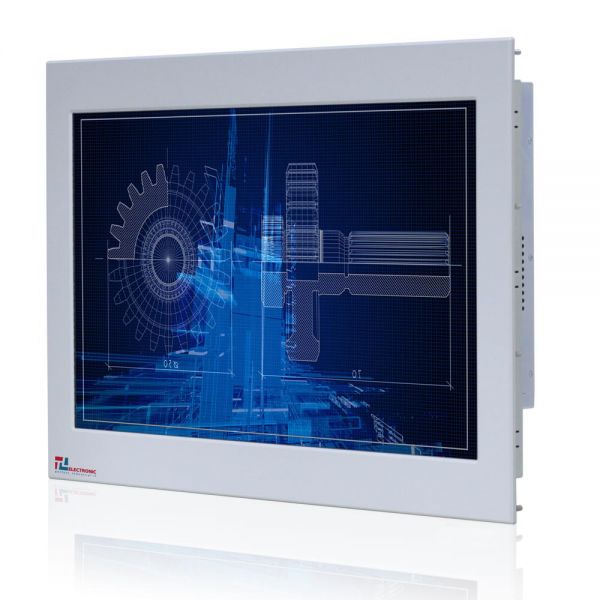

WM 22W-IK70-PMA-PRU
Industrial Automation, Touch-Screen for 1-Finger Operation, Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts
01-Industrie-Panel-PC-WM22WPMA-IP65-Einbau / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Order number:
23221121
gross price: €1,660.05
€1,395.00 *
gross price: €1,660.05
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
SPEZIFIKATIONEN
| Order number: | 23221121 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | W22IK7T-OFA3 |
| mechanics: | Panel Mount |
| dimensions width: | 55,0 |
| dimensions height: | 36,0 |
| dimensions depth: | 8,8 |
| weight: | 6,5 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| DisplayPort: | 1 x DisplayPort |
| USB: | 4 x USB 3.0 (Type-A) |
| serial: | 2 x RS232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| chipset: | Intel H170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7101E |
| CPU 64bit: | Ja |
| CPU speed: | 3,90 GHz |
| CPU cores: | 2 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| safety: | TPM 2.0 |
| CPU class: | Core i3 / i5 / i7 |
| Expansion slots: | 2 x M.2 slot |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
