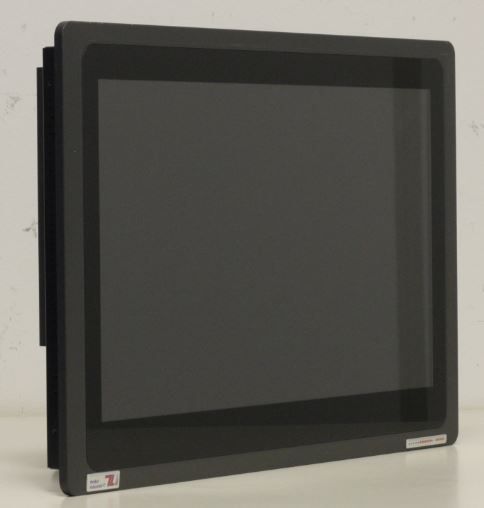

PT 18W-1082-PMA-MTU

PT 18W-1082-PMA-MTU.JPG / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 26180001
gross price: €1,422.05

€1,195.00 *

Ready to ship today,
Delivery time appr. 1-3 workdays

HIGHLIGHTS

SPEZIFIKATIONEN

Order number:	26180001
Manufacturer:	PT
Matchcode manufacturer:	nein
Manufacturer:	Protech
mechanics:	Panel Mount
dimensions width:	38,5
dimensions height:	31,8
dimensions depth:	11,5
weight:	8,8
Material housing:	Aluminium / aluminium
Material Front :	Aluminium / aluminum
protection front:	IP65
colour:	schwarz / black
controls:	2 Keys: Power, Reset
mounting:	Einbau von vorne / front installation
cooling:	lüfterlos / fanless
Display-diagonal (inch):	18,5
aspect ratio:	16:9
Display-Technology:	LCD, LED Backlight
Touch-Screen or glass:	Projected Capactive / Multi-Touch
Manufacturer controller:	P-CAP Touchcontroller
voltage input DC:	9-36 V/DC
external power supply:	12 V/DC, 100 - 240 V/AC, 4-pin
VGA:	1 x 15-pin D-sub
USB:	4 x USB 3.0
serial:	3 x RS-232, 1 x RS232/422/485
Audio:	Mic-In, Line-Out
LAN:	2x RJ45 - 10/100/1000 Mbps
CPU Typ:	Core i5
CPU Model:	3230M
CPU 64bit:	Ja
CPU speed:	2,6 GHz
CPU cores:	2
RAM size (MB):	4096
RAM Typ:	SO-DDR3L
SSD design:	2.5"
SSD capacity (GB):	128
Ethernet connections:	2 x RJ-45
Ethernet data transfer:	2 x Gigabit-LAN
operating temperatur min.:	0°C
operating temperatur max.:	50°C
warranty:	6 Monate / 6 months
