W22IT7T-PPA3
Multitouch-Screen,
Projected-Capacitive (PCAP)

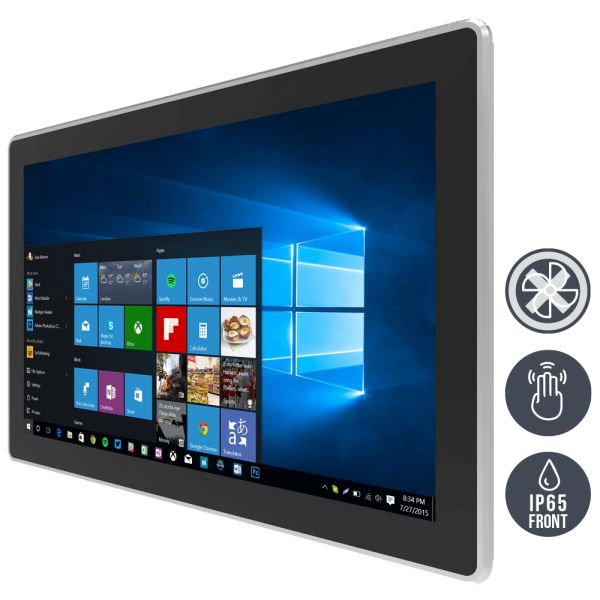

Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

01-PCAP-Multitouch-Industrie-Panel-PC W24IT7T-PPA2.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-PCAP-Multitouch-Industrie-Panel-PC W24IT7T-PPA2.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-PCAP-Multitouch-Industrie-Panel-PC W24IT7T-PPA2.jpg / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-PCAP-Multitouch-Industrie-Panel-PC W24IT7T-PPA2.jpg / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Order number: 23240071
gross price: €2,439.50
€2,050.00 *

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Frontseitiger IP65-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23240071
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: PP-Serie
Manufacturer item number: W24IT7T-PPA2
mechanics: Panel Mount
dimensions width: 60,4
dimensions height: 37,3
dimensions depth: 7,5
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
colour: Aluminium eloxiert / anodized aluminum
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 23,8
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI 2.0 (optional)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.2 Gen.1x1 (Type-A)
serial: 2 x RS232
Audio: Mic-In, Line-Out
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Core i5
CPU Model: 1135G7
CPU 64bit: Ja
CPU speed: 2,4 GHz
CPU cores: 4
CPU socket: FCBGA1449
RAM size (MB): 4096
RAM max. size (MB): 64000
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
safety: TPM 2.0
Expansion slots: 2 x M.2 slot
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Betriebssystem: Optional
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
Weiterführende Links zu "W22IT7T-PPA3"
Verfügbare Downloads:
