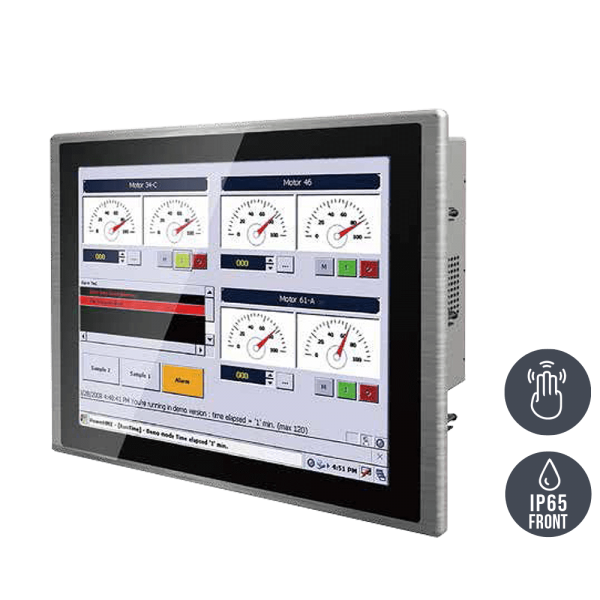

WM 19-VH-PMA-MTU
Multitouch-Screen, Projected-Capacitive (PCAP)

Multitouch industrial LCD for professional use Industrial monitor in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

01-PCAP-Multitouch-Industrie-Monitor-R19L300-PPA1.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-PCAP-Multitouch-Industrie-Monitor-R19L300-PPA1.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 51901603
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 51901603
Manufacturer: WM
MatchcodeHersteller: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: R19L300-PPA1
mechanics: Panel Mount
dimensions width: 47,4
dimensions height: 38,4
dimensions depth: 7,65
weight: 6,7
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: Aluminium gebürstet / aluminum brushed
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 400 cd/m²
contrast: 500:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 230 V/AC, DC plug
VGA: 1 x 15-pin D-sub
HDMI: 1 x HDMI
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
