11.6" Rugged Outdoor Tablet – robust and reliable without compromise

What our rugged tablets have to undergo as soon as they are at our customers’ or their customers’ operating sites …

The rugged tablet is used in harsh industrial environments

They fall on concrete floors, bump into equipment, scan goods in the pouring rain or record process data in the equatorial heat and sun. They spend nights in vehicles in sub-zero temperatures, are maltreated with dirty work gloves and shaken around on forklift trucks.

They have to tolerate that. For years. An industrial tablet that claims to be “rugged” and “outdoor” must therefore first and foremost be beyond reproach in terms of mechanics:

1500 grams of weight (it's not an iPad!) stand for the distinctly robust aluminum-magnesium construction.

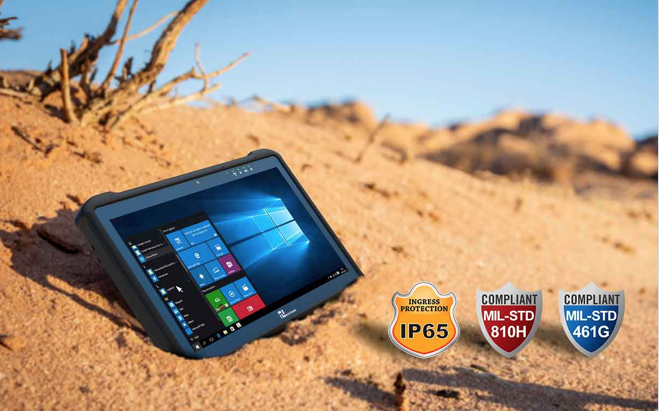

The housing complies with protection class IP65, and not just on the data sheet: all interfaces are located behind solid and user-friendly protective flaps. Dust, dirt and water don't stand a chance.
Extended temperature range: operating temperature (-20° to 60° C) and storage temperature (-30° to 70° C)
Shock, vibration and drop resistance in accordance with military standard MIL‑STD‑810H
EMC (electromagnetic compatibility) in accordance with MIL‑STD‑461G

The outdoor touch display has to remain legible outdoors, even in sunlight and strong interfering light. High brightness and contrast values (850 cd/m², 1000:1) and a wide viewing angle (170°) are particularly helpful here.

The M116TG is very easy to read even in bright sunlight

In addition, an anti-glare treatment on the touchscreen surface and optical bonding (the stable attachment of LCD and touch with transparent bonding material) ensure a drastic reduction in reflections and perfect readability even in direct sunlight.

The right touch mode for every purpose: “Hand/Rain” in normal operation or in damp conditions, “Glove” for operation with gloves and “Stylus” with pen ensure optimum operability under all conditions.

Hot-swappable batteries (can be changed during operation) with long runtimes enable you to be productive all day long without interruption, even without a power supply.

Conclusion: Your reliable companion for professionals in industries such as industrial automation, process optimization, warehousing, logistics, special vehicle construction, IoT 4.0, field service and rugged/outdoor.

The range of possible options and accessories is enormous. Our experts will be happy to advise you!

Discover Rugged M116TG
M116TG Tablet in field service
Intel quad-core CPU developed for tablets

The robust tablets are equipped with Intel “Tiger Lake” CPUs, which offer high performance reserves with low power consumption and a long battery life thanks to the latest 10 nm architecture.

Tablet with multi-touch touchscreen

The waterproof M116TG is equipped with a 10-point PCAP touchscreen for precise, intuitive control and user-friendly input. The changeable glove, rain and stylus mode makes operation easier.

Multiple data collection methods with real-time data connectivity

For real-time data access from mobile users, the tablet supports WWAN, WLAN, GPS and BT. In addition to the front camera and rear camera, it is equipped with an optional barcode reader or HF RFID reader.

optional keyboard

Wide range of accessory options: Keyboard, docking station, vehicle dock, vehicle cradle, vehicle charger, high capacity battery, hand strap, shoulder strap, carrying case and more.


Specifications Rugged Tablet M116TG
Display:  11.6" / 1920 × 1080,
850 cd/m² brightness, 1000:1 contrast,
“optical bonding” for sunlight readability
Touch:  projected-capacitive multi-touch,
glove, rain and stylus mode
CPU:  Intel Core i5-1135G7 (4 × 2,4 GHz)
OS Support:  Windows 10/11 IoT Enterprise
Memory:  8 GB DDR4 (max. 32 GB)
Storage:  256 GB M.2-SSD (max. 2 TB)
Communication:  WLAN, Bluetooth, 4G/5G (optional),
HF RFID reader (optional),
1D/2D barcode reader (optional)
Sensors:  GPS, GLONASS, light, G-sensor, gyroscope
Camera:  2 MP front, 8 MP + LED rear
Interfaces:  USB 3.0 Type A + C (up to 20 V),
RJ45 Gigabit Ethernet (optional),
3,5 mm Audio, Micro HDMI (optional)
Card slots:  1 × Micro SD (SDXC), 1 × Micro SIM
Controls:  Power, 6 × function keys
Battery:  4700 mAh, “hot swappable”,
high capacity battery (optional)
Material:  aluminium, magnesium
Weight:  1.5 kg
Security:  TPM 2.0, Kensington Lock
Protection:  IP65 against dust and water
Shock/vibration/drop:  acc. MIL-STD-810H
Operating temp.:  -20 ~ 60 °C
