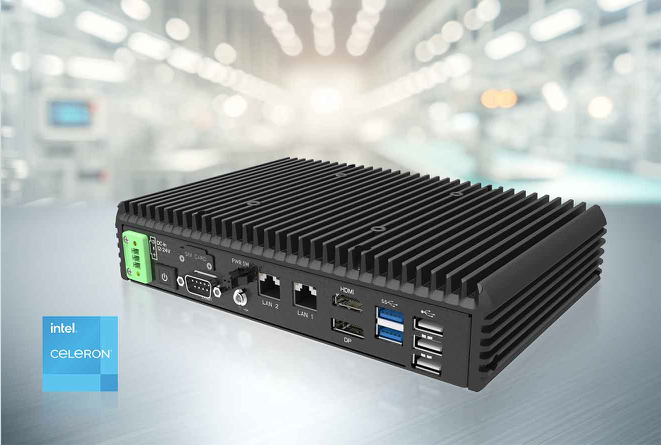

Your project requires highly efficient computing, communication or video performance directly on site – compact, economical and fail-safe? The exceedingly robust industrial PC BS-U830 in the versatile booksize format with a height of just 5 cm is designed for maintenance-free use in continuous operation on site. The completely fanless system without any mechanical or moving parts is protected in a robust steel sheet housing enclosed by a solid aluminum cooling element. |
 Intel® Celeron “Elkhart Lake” – this is the latest Celeron generation from the Intel Emedded program for long-term available CPUs. With this high-performance, economical fanless system, you can create future-proof applications with plenty of performance reserves under Windows 10/11 or Linux. |
|
The long-term available systems allow a permissible operating temperature of an impressive -40° C to +60° C. This allows you to implement not only reliable automation and system controls, but also a wide range of applications in transportation, logistics, point-of-information, terminals and wherever a small, reliable PC is needed. Are you looking for the perfect industrial PC for your project? Our experts will be happy to advise you! |
| Discover BS-U830 IPC |
 |
|
Flexible communication talent: In addition to seven USB and two serial RS-232/422/485 interfaces with 5V/12V, 2 × LAN and optional WLAN are also available. The terminal block for the power connection can be used flexibly with system power or a power supply unit. 4K video output via HDMI or DisplayPort: Realize sophisticated information systems even under adverse environmental conditions. Install the robust IPC easily and securely with mounting brackets or on a top-hat rail (DIN rail). The device can also be positioned freely at the place of use on the non-slip feet. |
 |
|
Even more freedom is offered by the universal digital I/O with six inputs and six outputs. Optionally use two additional LAN ports for applications with Power-over-Ethernet. |
| Specifications BS-U830 | |
| CPU: | Intel Celeron J6412 (4 × 2 GHz), optional Atom x6212RE/x6425RE |
| OS Support: | Windows 10/11 IoT Enterprise, Ubuntu |
| Memory: | 8-32 GB DDR4 |
| Storage: | 256 GB M.2 and/or 2.5" SSD |
| Interfaces: | 2 × USB 3.0, 5 × USB 2.0, 2 × COM (RS-232/422/485 5V/12V), 2 × RJ45 LAN, Line-Out |
| Digital-I/O: | 6 × in / 6 × out incl. 2 × 5V, 2 × GND |
| Video-Out: | DisplayPort max. 4096×2304, HDMI max. 4096×2160 |
| PoE: | optional 2 × RJ45 Power-over-Ethernet (30 W) |
| WLAN: | optional |
| Dimensions: | 22 × 14 × 5 cm (W×D×H) |
| Material: | Aluminium and steel sheet |
| Protection: | IP20 |
| Operating temp.: | -40 ~ 60 °C |
| Power-In: | 12/24 V terminal block, 3 pin |
| Mounting: | Wall mounting rails (optional), DIN rail top-hat rail adapter (optional) |
