Always responsive: resistive touch is the indestructible classic for industrial panel PCs

Brand-new stainless steel generation IE series with the latest Intel CPU.

Did you know that our latest Panel PC generations are also available with resistive touchscreen technology (instead of PCAP multi-touch), a proven technology for decades?

More than 20 years ago, we installed the first ones at TL – the pressure-sensitive touch systems for classic 1-finger operation are unbeatable in terms of reliability.

The advantages at a glance:

very easy to clean
lowest interference liability also with dirt and moisture
easy integration
low overall system costs

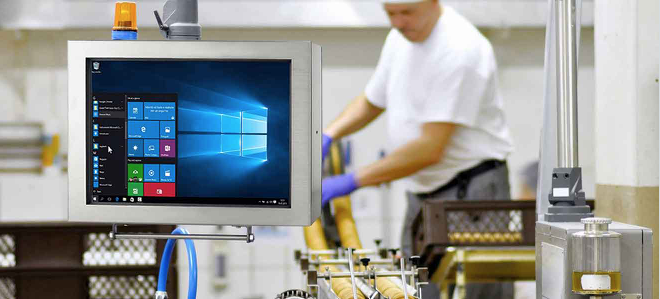

This also applies to the innovative IE Series, with which you can easily realize demanding projects, e.g. in the food, chemical and pharmaceutical industries, medical technology, process engineering, plant engineering, etc.

Celeron N6211 vs. N2930 CPU Benchmark

Intel Celeron N6211 “Elkhart Lake” – this is the new generation of Celeron CPUs from Intel’s long-term available embedded program. Thanks to modern 10 nm architecture, the performance surpasses the previous type by far. With this efficient and economical fanless system, you will create future-proof applications.

Made entirely of stainless steel, the systems are absolutely dust-tight and protected all around against dirt and water according to IP65. The housings are corrosion and liquid resistant – perfect for frequent cleaning and aggressive disinfection.

Talk to one of our experts to find the exact device that meets all your requirements and standards!

Discover IE Series Panel PC
Panel PC in IP65 protection

The IP code (Ingress Protection) defines the degree of protection of housings in the international standard IEC 60529. IP65 means: The housing is absolutely dust-tight all around and protected against water jets from different angles.

AISI / SUS 316 stainless steel corrosion resistance

AISI / SUS 316 Stainless Steel: Better corrosion resistance, tensile strength and acid resistance than standard AISI 304 – perfect for aggressive cleaning processes and environments.

Robust touch screen for 1-finger-operaion

The resistive Touch can also be operated with coarse gloves and a pen, has a robust, easily washable surface and is ideal for workplaces even with a lot of dirt and moisture.

Cables and connectors IP65-protected on the rear side

All interfaces are implemented at the rear via fully protected M12 connectors. The appropriate connection cables are included in the scope of delivery.

Yoke mount bracket for installation

Clever accessory: the stainless steel tiltable yoke mount for stable installation as an alternative to VESA mounting systems.

Specifications IE-Series
Display:  15"–24", 1024×768 to 1920×1080
Touch screen:  Resistive, 1-finger input
CPU:  Intel® Celeron N6211 (2 × 1,2–3,0 GHz),
fanless, Embedded model
OS Support:  Windows 10 / 11 IoT Enterprise
Memory:  4 / 8 / 16 GB DDR4
Storage:  128 / 256 / 512 GB M.2-SSD,
2.5" SSD max. 1 TB optional
Interfaces:  2 × USB 2.0, 1 × COM, 1 × RJ‑45 Ethernet,
IP65-protected M12 connection cable incl.
Communication:  WLAN / Bluetooth optional
Graphics:  Intel UHD (10. generation)
Security:  TPM 2.0
Buttons:  Power, Reset
Power:  12 V/DC, M12 waterproof connector
Material:  Stainless steel AISI / SUS 316
Protection:  IP65 all around against dust and water
Mounting:  VESA mounting interface,
tiltable yoke mount optional
