Communication & Monitoring Talent: Embedded Box PC with Celeron "Elkhart Lake"

To meet the requirements of demanding IoT applications on only 205 × 110 mm, the rugged industrial PCs have extensive interfaces and extensions that support multiple communication and data transmission. Ideal for space-constrained industrial environments.

Celeron N6211 Elkhart vs. Celeron N3350


Intel® Celeron “Elkhart Lake” – this is the latest Celeron generation from the Intel Emedded Program for long-term available CPUs. With this high-performance, economical fanless system, you create future-proof applications with ample performance reserves under Windows 10 / 11 or Linux.

Realize a remote monitoring system via the optional built-in HDMI capture card (or CVBS) without additional adapters hanging loosely on the system.

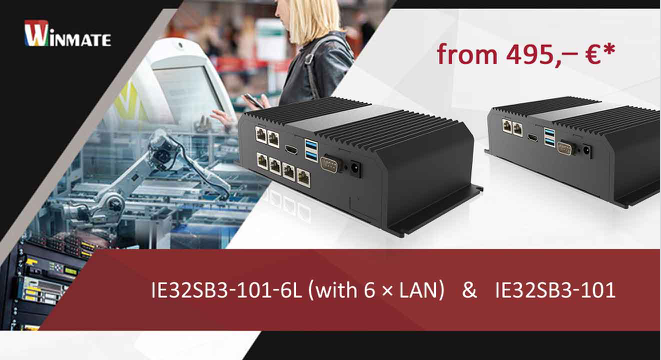

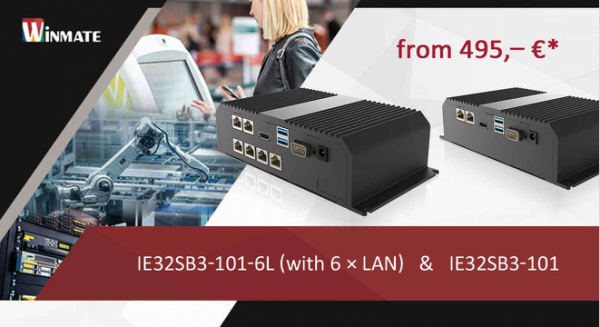

6 RJ-45 LAN interfaces in the front of the embedded box PCs


Create lean and reliable system integrations for IoT applications, remote monitoring, embedded control, human-machine interfaces, interactive kiosk and digital signage, and many other industrial embedded and edge computing applications.

Fanless cooling with solid aluminum heat sink


The durable slim housing in a closed aluminum design serves as a solid heat sink for fail-safe use even in 24/7 continuous operation at 0-55 °C operating temperature. The mounting rails allow easy and space-saving installation.


Configuration
CPUs:  Celeron N6210 (2 × 1,2–2,6 GHz),
Celeron N6211 (2 × 1,2–3,0 GHz)
OS Support:  Windows 10/11 IoT Enterprise (64 bit), Linux
RAM:  4 / 8 / 16 GB DDR4
Storage:  128 / 256 / 512 GB M.2 SSD
 LAN:  6 × RJ-45 (IE32SB3-101-6L)
2 × RJ-45 (IE32SB3-101)
Interfaces:  2 × USB 3.2, 1 × COM (optional 3 ×), HDMI 2.0
Capture Card:  optional for HDMI or CVBS input
Security:  TPM 2.0
Operating temp.:  0-55 °C
Dimensions:  205 × 110 × 55 mm
Material:  Aluminium
Mounting:  Wall or desk mounting
