Compact M-series IPCs: High-performance, service-friendly and flexible

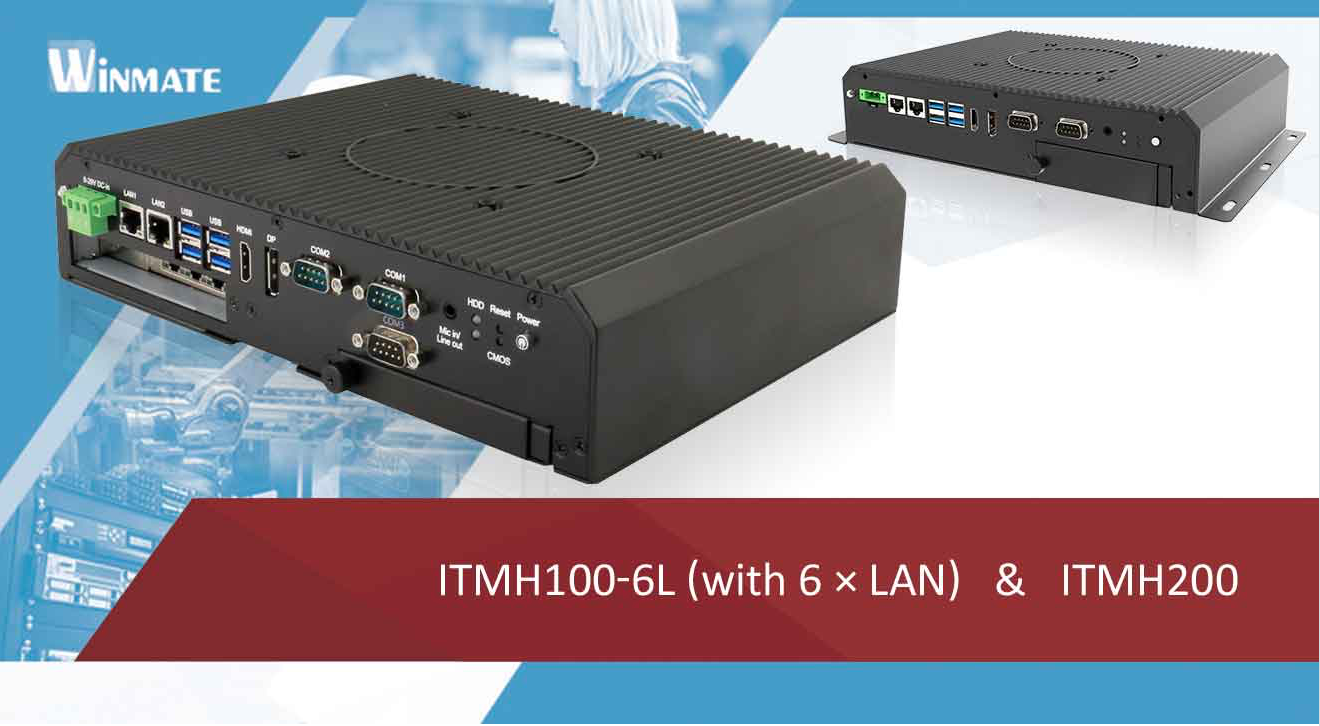

Wall-mountable modular box industrial PCs with Core‑i “Tiger Lake” and up to 6 × LAN




Core i5-1135G7 Tiger Lake vs. 8. Generation


Intel® Core i5-1135G7 “Tiger Lake” – this is the 11th generation of mobile CPUs from Intel’s top performing Core-i series. With this efficient and economical fanless system, you create reliable and fail-safe applications with plenty of performance reserves.

Modular maintenance-friendly design of the box PCs


The modular system design makes it easy to maintain and upgrade system components such as memory and storage or change the display size. This means you can easily adapt the device to changing requirements.

Fanless cooling with solid aluminum heat sink


Maintain productivity and avoid costly downtime: These box PCs withstand harsh conditions with a rugged and durable construction. The fanless design prevents dust accumulation and mechanical failures, thus improving reliability.


Configuration
CPUs:  Core i5-1135G7 (4 × 2,4–4,2 GHz)
OS Support:  Windows 10 IoT Enterprise (64 bit)
RAM:  4-32 GB DDR4
Storage:  M.2 SSD 128-512 GB,
2.5" SSD from 256 GB (optional)
LAN:  6 × RJ-45 (ITMH100-6L),
2 × RJ-45 (ITMH200)
WLAN/BT:  optional
Interfaces:  4 × USB 3.2, 2 × COM (optional 3 ×)
Video/Audio:  DisplayPort 1.2, HDMI 2.0 optional, Audio-I/O
PCIe-Slot:  optional PCIe x16
Capture Card:  optional for HDMI or CVBS input
Power-in:  9-29 V/DC
Security:  TPM 2.0
Operating temp.:  0-50 °C
Material:  Aluminium
Mounting:  Wall / desk / VESA mounting
