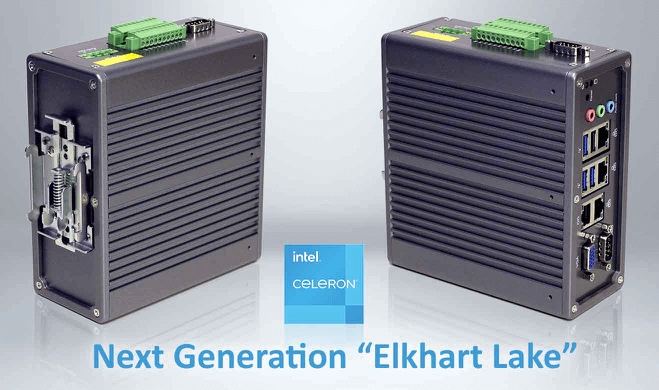

DIN-Rail Embedded PC with more performance on the top-hat rail

For the practical installation on an industry-typical top-hat rail (DIN Rail TS 35), the DR2100 embedded PC was developed. This robust, compact all-rounder has been proven in countless industrial applications for many years.

We have always kept the system configuration state-of-the-art: DR2100-EL is the latest generation with Intel's long-term available 10 nm Celeron N6211 “Elkhart Lake” CPU.

Fanless performance and an extensive range of interfaces make the slim industrial PC a reliable multi-talent in the control cabinet with excellent communication capabilities.

Celeron N6211 vs. N2930 CPU benchmark

Intel Celeron N6211 “Elkhart Lake” – this is the new generation of Celeron CPUs from Intel's long-term available embedded program. Thanks to modern 10 nm architecture, the performance is far superior to its predecessor. With this efficient and economical fanless system, you can create future-proof applications.

Talk to one of our experts to find exactly the device that meets all your requirements and standards!

Discover DR2100-EL now
mounted on a top-hat-rail

The compact DIN Rail Box PC is designed for mounting on a TS35 top-hat rail in control enclosures and control cabinets.

The N6211 CPU

With the N6211 CPU, the efficient DR2100-EL offers >100% more performance than its predecessor while consuming less power.

View from the front

The numerous interfaces are all accessible from the front, which makes installation and subsequent modifications in the control cabinet or control housing easier.

View from the top

In addition to the digital I/O (9×in 9×out, optional different), the device has numerous interfaces and can be easily connected to a wide range of peripheral devices.

Embedded PC's passive cooling system

The passive cooling system ensures that the IPC runs reliably in a wide operating temperature range from ‑20 °C to +60 °C, enabling safe operation in harsh industrial environments.

Mounting on din rail

The DIN rail mounting kit provides a flexible installation solution that allows users to mount the terminal block easily and securely, which is ideal for applications where space is limited.


Specifications DR2100-EL
CPU:  N6211 (2 × 1.2–3.0 GHz),
N6210 (2 × 1.2–2.6 GHz),
fanless, embedded models
RAM:  4 / 8 / 16 GB DDR4
Storage:  128 / 256 / 512 GB M.2-SSD,
2.5" SSD optional
Interfaces:  4 × RJ45 Gigabit Ethernet,
3 × USB 3.2, 1 × USB 2.0,
1 × COM RS232/422/485,
1 × COM RS422/485 (isolated),
Digital I/O 20-pin 5V (isolated),
Audio-I/O, VGA
OS Support:  Windows 10/11 IoT Enterprise (64 bit),
Windows 11 Pro (64 bit),
Linux Ubuntu
Material:  Aluminium
Size h×w×d:  139 × 66 × 152 mm
Protection:  IP40
Operating temp.:  -20~60 °C
Power:  9~36 VDC (isolated)
