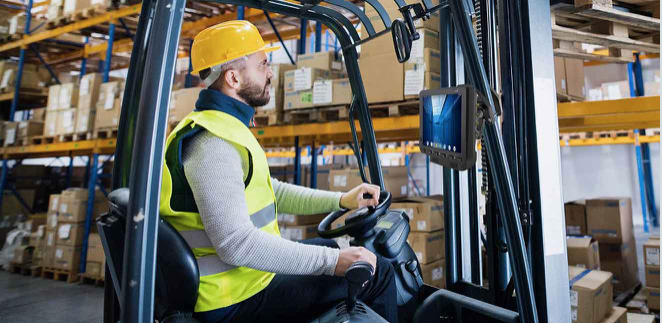

Systems for data acquisition and communication in vehicles must meet high requirements such as resistance to shock and vibration, IP65 protection, extended temperature range, wide-range voltage input, extensive accessories for securing, mounting, communication and much more. The robust and fully protected vehicle mount computers are perfect for easy installation in trucks, agricultural machinery, forklifts and vehicles of all kinds. The fanless systems with robust housing and wireless connectivity offer everything that logistics and the automotive industry require. The Qualcomm Snapdragon™ 660 is appreciated for its powerful and energy-efficient performance, ideal for demanding applications. Android offers a flexible and user-friendly platform that is highly customizable and widely used, facilitating the development and integration of specific applications. Possible applications include freight tracking, single item tracking in warehouses and production, cargo and cold chain monitoring, optimizing material flow, streamlining the supply chain, scheduling and route planning, vehicle diagnostics and much more: |
 |
 |
 |
The FM-V Series: Rugged Vehicle Mount Computer for secure VESA mounting |
 |
|
The absolutely robust and high-quality processed FM-V series offers full IP65 protection against dust and water incl. the interfaces and is resistant against shocks and vibrations. The rear VESA interfaces allow you to mount the slim systems securely in all types of application vehicles with the help of the extensive range of accessories. |
The 8-core Snapdragon™ 660 CPU impresses with its energy-efficient performance. Long-term support reduces maintenance and ensures years of reliability.
Programmable function keys and the PCAP multi-touch are resistant to scratches, dirt and deposits for indestructible ease of use.
Vibration and shock-resistant design for reliable performance in harsh environments: The solid housing is MIL-STD-810H certified and complies with protection class IP65.
The FM-Vs have an optional backup battery for 20 minutes. This enables uninterrupted switching between workstations.
The variety of I/O interfaces for onboard peripherals and other extensions enables countless application scenarios in vehicle and field applications.
Reliable data processing at extreme operating temperatures: frost and condensation-free operation in warehouses, cold chains and heavy-duty vehicles. |
| Specifications FM-V | |
| Display: | 10.4" / 12.1", 1024×768 |
| Touch: | Projected capacitive multi-touch, finger/pen/glove mode |
| CPU: | Qualcomm Snapdragon™ 660 octa-core 2.2 GHz |
| OS Support: | Android 9.0 |
| Storage: | 32 GB SSD |
| Communication: | WLAN, Bluetooth, optional 4G/LTE |
| Sensors: | GPS/GLONASS (optional), G-Sensor, temperature |
| Camera: | 2 MP front camera |
| Interfaces: | USB 3.0, USB 2.0, 2 × RS232/422/485, Gigabit Ethernet, Audio-I/O (optional), DIDO (optional), CANBus (optional) |
| Card slots: | Micro SD, Dual-Nano SIM |
| Controls: | Power, 6 × function keys |
| Power: | 10~60 VDC wide-range input, ignition control |
| Battery: | optional 400 mAh UPS battery |
| Material: | Aluminium |
| Mounting: | VESA interface on the rear |
| Protection: | IP65 against dust and water |
| Shock/vibration: | acc. to MIL-STD-810H |
| Operating temp.: | -30 ~ 50 °C |
