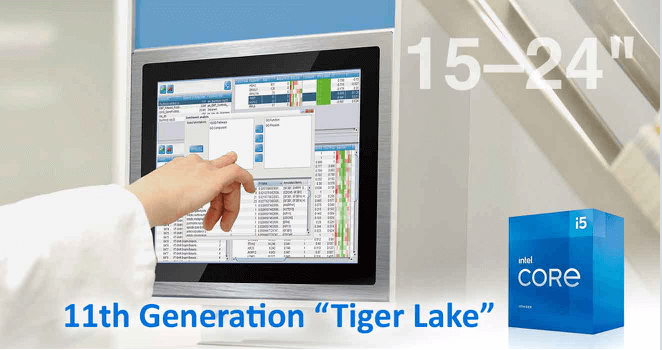

Also in the industrial sector, operating concepts with multi-touch are justifiably becoming more and more popular. Realize modern multi-touch applications in industrial environments: The IP65-protected and 8 mm thick installation front made of anodized aluminium with a flat surface without dirt edges not only looks extremely appealing, but also enables a wide range of application scenarios. System performance and software must also keep pace with developments in order to enable future-proof applications. That’s why the new IT70 configuration, an innovative CPU and system generation for Windows 10 / 11, is now available for your projects: |
 Intel Core i5-1135G7 “Tiger Lake” – this is the 11th generation of Core i CPUs from Intel’s mobile program for demanding applications in compact devices. Thanks to modern 10 nm architecture, the performance is far superior to its predecessor. With this efficient and economical fanless system, you can create future-proof applications. |
|
The robust devices in the multi-touch series offer a reliable basis for future-proof operation and monitoring. As usual, the valued benefits, the workmanship, the look and feel and the features are beyond reproach. Talk to one of our experts to find exactly the device that meets all your requirements and standards! |
The industrial panel PC is equipped with a capacitive multi-touch for convenient control of applications with gesture and multi-finger operation.
The elegant 8 mm thick aluminum front for practical panel mount installation has a flat surface with no dirt edges - ideal for industrial applications.
The extremely robust sheet steel housing has a high-quality finish and provides access to the interfaces and operating elements from below.
Powerful: Intel's 11th generation Core i5 Mobile CPU (Tiger Lake) with 4 cores, up to 4.2 GHz (Turbo) and energy-saving 10nm architecture (only 15 watts TDP).
Protection class IP65 explained: The 6 stands for protection against the ingress of dust. The 5 stands for protection against water jets from any angle. The protection is on the front.
Choose between different display diagonals from 15" to 24" from the Multiouch series to suit your application or installation requirements. |
|
Specifications IT70 configuration |
|
| Display: | 15" / 17" / 19" / 21.5" / 23.8" |
| Touch: | projected-capacitive multi-touch |
| CPU: | Intel® Core™ i5-1135G7 (fanless) |
| RAM: | 4 GB DDR4 (max. 64 GB) |
| Storage: | 128 GB M.2 SSD (max. 4 TB) |
| Interfaces: | 4 × USB 3.2, 2 × COM, 2 × RJ45, Audio-I/O, DisplayPort, HDMI optional |
| OS Support: | Windows 10/11 IoT Enterprise |
| Power: | 12 VDC |
| Mounting: | Panelmount installation from the front |
| Protection: | IP65 on the front against dust and water |
