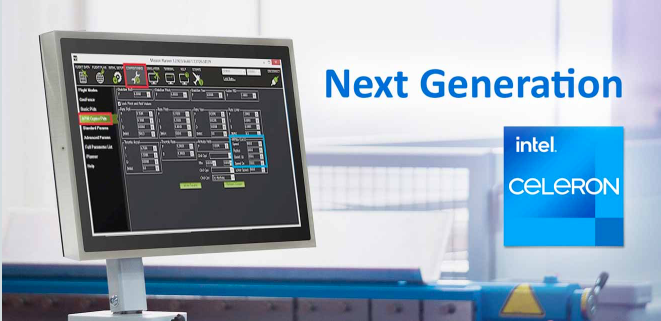

Proven thousands of times over many years, the panel PCs of our stainless steel series are in use in projects in the food, chemical and pharmaceutical industries, medical technology, process engineering, plant engineering, etc. These fields of application not only place high hygienic, mechanical and optical demands – a challenge for any IT hardware. System performance and software must also keep pace with developments to enable future-proof applications. That’s why the IE-Series always provides your projects with the latest CPU and system generations for Windows 10/11: |
 Intel Celeron N6211 “Elkhart Lake” – this is the new generation of Celeron CPUs from Intel’s long-term available embedded program. Thanks to modern 10 nm architecture, the performance surpasses the previous type by far. With this efficient and economical fanless system, you will create future-proof applications. |
|
The valued benefits of the stainless steel panel PCs – mechanics, safety, ease of use, brilliant PCAP multitouch LCDs – and an attractive price/performance ratioare our non-negotiable quality standard that you can rely on. Made entirely of stainless steel, the systems are absolutely dust-tight and protected all around against dirt and water according to IP65. The housings are corrosion and liquid resistant – perfect for frequent cleaning and aggressive disinfection. Talk to one of our experts to find the exact device that meets all your requirements and standards! |
| Discover IE-Series Panel PC |
 The IP code (Ingress Protection) defines the degree of protection of housings in the international standard IEC 60529. IP65 means: The housing is absolutely dust-tight all around and protected against water jets from different angles. |
AISI / SUS 316 Stainless Steel: Better corrosion resistance, tensile strength and acid resistance than standard AISI 304 – perfect for aggressive cleaning processes and environments.
The PCAP multi-touch can also be operated with gloves, has a flat front without dirty edges and is ideal for workplaces that have high hygienic requirements and are cleaned frequently.
All interfaces are implemented at the rear via fully protected M12 connectors. The appropriate connection cables are included in the scope of delivery.
Clever accessory: the stainless steel tiltable yoke mount for stable installation as an alternative to VESA mounting systems. |
 |
|
High-quality stainless steel is indispensable in applications with stringent hygienic, mechanical or visual requirements. The systems have exceptional chemical and mechanical resistance … … and, thanks to IP65 protection, are ideal for the food and beverage industry, the packaging industry, the manufacture of sanitary articles, industrial automation, the chemical industry, logistics and much more. |
| Specifications IE-Series | |
| Display: | 15"–24" PCAP Multi-Touchscreen |
| CPU: | Intel® Celeron N6211 (2 × 1,2–3,0 GHz), fanless, Embedded model |
| OS Support: | Windows 10 / 11 IoT Enterprise |
| Memory: | 4 / 8 / 16 GB DDR4 |
| Storage: | 128 / 256 / 512 GB M.2-SSD, 2.5" SSD max. 1 TB optional |
| Interfaces: | 2 × USB 2.0, 1 × COM, 1 × RJ‑45 Ethernet, IP65-protected M12 connection cable incl. |
| Communication: | WLAN / Bluetooth optional |
| Graphics: | Intel UHD (10. generation) |
| Security: | TPM 2.0 |
| Buttons: | Power, Reset |
| Power: | 12 V/DC, M12 waterproof connector |
| Material: | Stainless steel AISI / SUS 316 |
| Protection: | IP65 all around against dust and water |
| Mounting: | VESA mounting interface, tiltable yoke mount optional |
