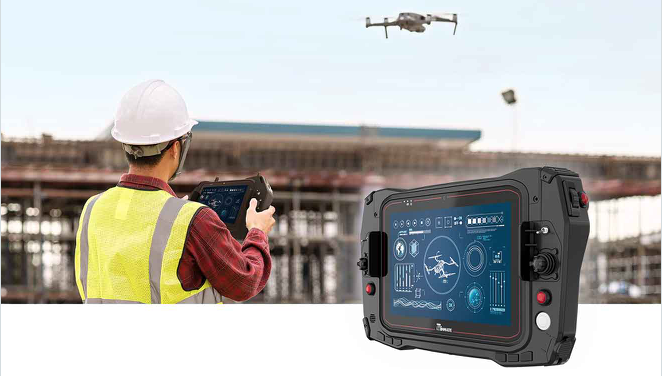

Ground control – controlling drones, machines and robots

The Winmate Ground Control Station is a powerful and reliable solution for UAV operations and enables you to realize countless applications in robotic control, industrial inspection, security surveillance, agriculture, public inspections, intelligent air patrols, disaster response, site inspections and building maintenance.

With its intuitive user interface, advanced flight control and monitoring capabilities, seamless payload management, reliable connectivity and robust design, the Winmate GCS enables operators to efficiently and reliably control and monitor UAV missions.

Highlights:

10,1" high brightness sunlight readable touchscreen
Intel Core i5-1135G7 “Tiger Lake” CPU
All-weather, dust- and waterproof IP65 design
Shock, vibration and drop resistance (MIL-STD-810H)
Video SW decoder with low latency for high-resolution real-time video playback
Supports WLAN, Bluetooth, optional 4G/5G
Embedded TPM IC and optional OPAL SSD
Removable second battery and a battery life of over 10 hours

The rugged handheld controller focuses on ergonomics and robust design. With powerful processors for stable and advanced performance, the controllers are built tough for various applications.

Winmate is able to deliver customized versions, e.g. with changing joysticks, switches, buttons and branding tailored to your specific application.

Are you looking for a mobility solution for your company? Our experts will be happy to advise you!

The GCS is robust and has a high-quality finish
Discover G101TG now
Uncompromised Rugged Mobility


The G101TG is based on Winmate's most reliable rugged industrial tablets. The handheld controllers are ruggedly built and tested to US defense standard MIL-STD 810H and are IP65 rated for remote control in even the harshest environments.

Enhanced Security


In addition to the embedded TPM 2.0, the G101TG controller also offers an optional OPAL SSD to ensure that sensitive data is secure and protected from unauthorized access. By embedding these functions, it is compact and easy to use.

Long Battery Life


The ground control station has a removable 10-hour rechargeable battery. The exceptional reliability and maneuverability also provides an outstanding flying experience. Pilots can concentrate on capturing aerial images without having to worry about performance limitations.

4G/5G


This powerful and practical tool supports optional WIFI, BT and 4G/5G connectivity. Thanks to its versatility and connectivity options, users can take advantage of live video transmissions, remote control and internet access while flying their drone.




Technical drawing of the device with functional description
Specifications Ground Control Station G101TG
Display:  10.1" / 1920 × 1200,
800 cd/m² brightness, 800:1 contrast,
“Optical Bonding” for sunlight readability
Touch:  projected-capacitive multi-touch,
glove, rain and stylus mode
CPU:  Intel Core i5-1135G7 (4 × 2,4 GHz)
OS Support:  Windows 10/11 IoT Enterprise
Memory:  4 GB DDR4 (max. 32 GB)
Storage:  128 GB SSD (max. 2 TB)
Communication:  WLAN, Bluetooth, 4G/5G (optional)
Sensors:  GPS, GLONASS, light, G-sensor, gyroscope
Camera:  2 MP front
Interfaces:  USB 2.0
2 × Mirco HDMI out
Giga LAN M8
19 V/DC in
Audio:  1 × speaker
Controls:  Power, 18 × function keys
Battery:  3500 mAh internal + secondary battery
Dimensions:  37 × 22 × 7 cm
Weight:  2,4 kg
Security:  TPM 2.0, Kensington lock,
SOTI MobiControl compliance
Protection:  IP65 against dust and water
Shock/vibration/drop:  acc. MIL-STD-810H
Operating temp.:  -10 ~ 50 °C
