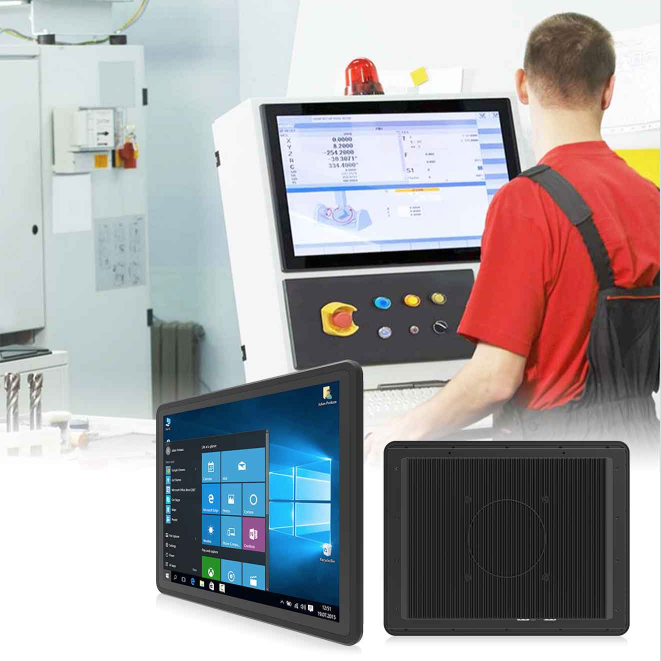

12–24" touch panel with removable, service-friendly fanless PC module for quick installation/removal and maintenance. Long-term availability, IP65 protection, robust aluminum/steel sheet, many interfaces, 9~29 V input, economical Core i5 power, expandability and ATEX option.
|
In modern production environments at your or your customers’ facilities—in fact anywhere where automated processes run—nothing works without PCs and displays for operation and monitoring. Long downtimes for maintenance are expensive and unacceptable. Reliable and robust hardware is mandatory. In addition, it must be ensured that everything is as quick and easy as possible in cases such as maintenance, upgrading or replacement. All-in-one panels often lack the necessary flexibility to meet these requirements. This is why we have developed the modular M series for panel PCs with our partner Winmate. The individual combination of robust, easy-to-maintain box PC module and IP65-protected display module guarantees the necessary reliability and maximum efficiency in terms of maintenance and downtimes. Of course, our experts will be happy to advise you in detail at any time and present you with individual options: |
| Discover M-Series Panel PC |
 Intel® Core i5-1135G7 “Tiger Lake” – this is the 11th generation of mobile CPUs from Intel’s powerful Core i series. With this efficient and economical fanless system, you can create reliable and fail-safe applications with plenty of performance reserves. |
 Upgrade the memory, replace the SSD or use the PCIe slot. The HMIs offer an easily accessible service window. The modular system design enables simple maintenance. Easily adapt the device to changing requirements. Or swap out the entire PC unit rapidly if necessary: |
 |
 Maintain productivity and avoid costly downtime: Panel PCs withstand harsh conditions with a robust and durable construction. The fanless design and flat surface prevent dust accumulation and mechanical failures, improving reliability. |
| Specifications M-Series HMI Panel PCs | |
| Display: | 12" / 15" / 17" / 19" / 22" / 24", 1024×768 to 1920×1080 |
| Touch: | Projected capacitive multi-touch |
| CPU: | Intel Core i5-1135G7 (4 × 2,4–4,2 GHz) |
| OS Support: | Windows 10/11 IoT Enterprise |
| Memory: | 4-32 GB DDR4 |
| Storage: | 128/256/512 GB M.2-SSD, 2 × 2.5" Removable SSD optional |
| Communication: | WLAN and Bluetooth optional |
| Interfaces: | 4 × USB 3.2 (Type A), 2 × RS-232/422/485, 2 × RJ45 Gigabit Ethernet, DisplayPort 1.4, HDMI 2.0 (optional), 3,5 mm Audio |
| Expansions: | 1 × PCIe x16 (x4 signal) |
| Power-in: | 9~29 V/DC |
| Material: | Steel sheet, aluminum (anti-corrosion treatment) |
| Protection: | IP65 front against dust and water |
