More performance for professional DIN Rail use – compact, powerful and versatile

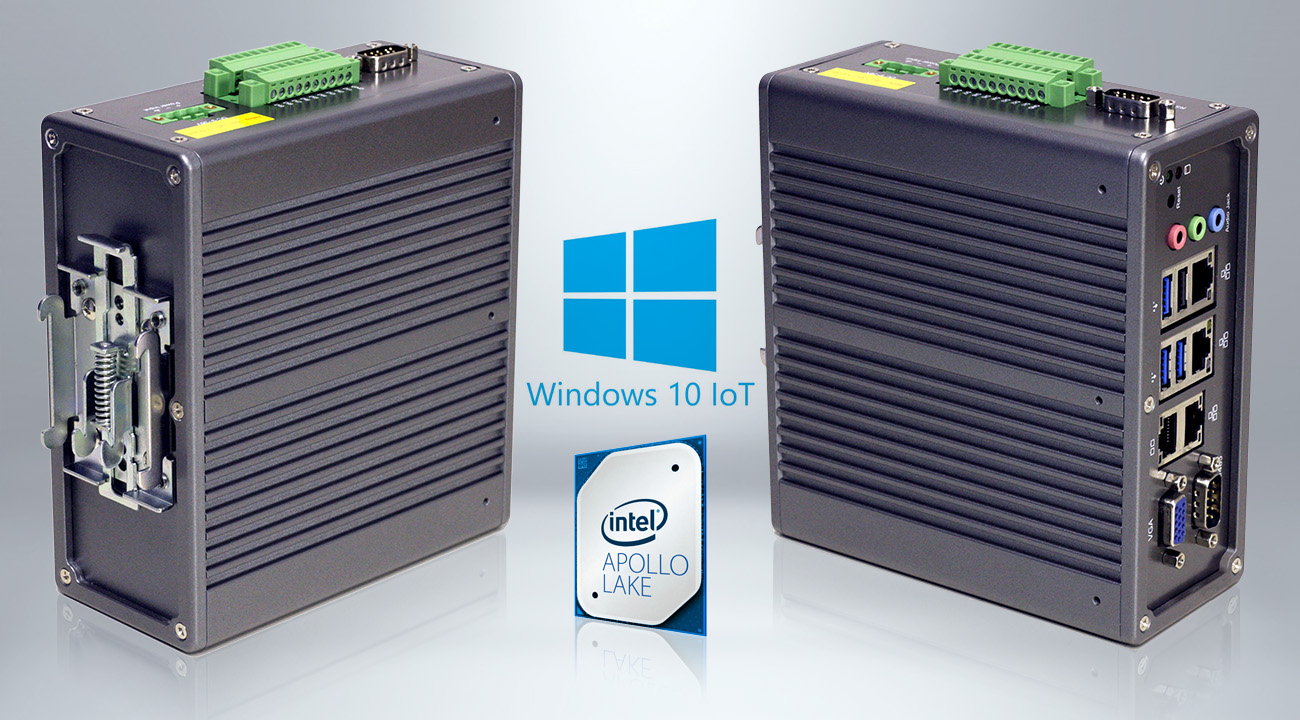

The new Embedded PC DR2100-P was developed for practical installation on an industry-standard DIN rail TS 35. Fanless 4-core performance (now with Intel Apollo Lake) and an extensive range of interfaces qualify the slim industrial PC as a communication-friendly all-rounder in the control cabinet. We are there for you and advise you comprehensively on an individualized solution that exactly suits you.



Product highlights:

• The compact DIN Rail Box PC is designed for mounting on a TS35 top hat rail in control housings and control cabinets.

• NEW: With the Intel N4200 CPU, the efficient DR2100-P offers 25% more power than its predecessor with lower power consumption.

• The numerous interfaces are all accessible from the front, which makes installation and subsequent modifications in the control cabinet or control housing easier.

• In addition to digital I / O (9 × input / 9 × output), the embedded PC has numerous interfaces so that it can be easily connected to a variety of peripheral devices.

• The sophisticated passive cooling system ensures that the device runs reliably in a wide operating temperature range from -20 ° C to + 60 ° C, which enables safe operation in harsh industrial environments.

• The DIN rail mounting kit provides a flexible installation solution that allows users to easily and securely install the terminal block, which is ideal for applications with limited space.
