Proven for years – now newly upgraded!

With the M101EK, you now receive the latest generation with Intel’s new 10 nm CPU N6211 (“Elkhart Lake”) and a whole range of new features and options.

The well-known core competencies of the M101 series such as the rugged design according to MIL standard (new: MIL-STD-810H), IP65 protection against dirt, dust and water, the hot-swap battery (replaceable during operation) and high connectivity will of course all remain with you.

Rugged tablet M101 with brilliant display and high-quality aluminum-magnesium housing

The rugged tablet with a resistant aluminum-magnesium case is additionally equipped with rubber shock absorbers at all corners. It not only lies securely and grippily in the hand, but it also survives accidental drops. You can securely fix the practical touch pen on the back.

Discover Rugged M101EK
Intel Celeron Elkhart Lake

New: Celeron N6211 “Elkhart Lake” with 10 nm architecture and only 6.5 watts (TDP) from Intel’s long-term capable embedded program.


M101 tablet excellently readable even in direct light incidence

Multi-touch display with optical bonding: direct LCD glass bonding for optimum readability in sunlight (anti-reflective solution).

M101 tablet survives falls

The rugged rubberized aluminum-magnesium tablets withstand vibrations, shocks and drops from 4 ft. according to MIL-810H standard.


M101 Tablet IP65-protected tolerates moisture and dirt

IP65-protected all around against dirt and water, the M101 tablets are the ideal companions even in harsh outdoor use.

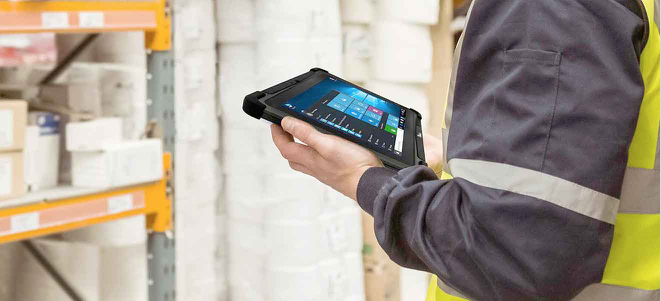

Barcode scanning with M101 tablet in warehouse

Options such as 1D/2D barcode and RFID scanners enable clever applications, e.g. in logistics, production and warehousing.


GPS and cellular-based application in a vehicle

Use GPS and mobile communication for smart automotive applications in field service, maintenance and logistics.

M101 mounted on a forklift truck

Different mounting solutions and docking systems for safe installation in vehicles of all kind or forklifts are available.


Docking station, wrist strap, charging station, barcode reader and much more are available as accessories for the M101 Tablet.

Expand the capabilities of your M101 tablets with accessories for charging, mounting, carrying, operating, capturing, printing and connecting.

Discover Rugged M101EK
Specifications Rugged Tablet M101EK
Display:  10.1" / 1920 × 1200,
projected-capacitive multi-touch,
direct optical bonding
Protection:  IP65 against dust and water
Shock/vibration/drop:  acc. to MIL-STD-810H
CPU:  Celeron N6211 (2 × 1,2–3,0 GHz), fanless
OS Support:  Windows 10 IoT Enterprise,
Windows 11 optional
Communication:  WLAN, Bluetooth, 4G / 5G WWAN (optional),
HF / UHF RFID (optional),
1D/2D barcode reader (optional)
Interfaces:  USB 3.0 Type A + C (up to 20 V),
3,5 mm Audio, Micro HDMI (optional)
Memory:  4 / 8 GB LPDDR4
Storage:  128 / 256 / 512 GB M.2-SSD
Card slots:  1 × Micro SD (SDXC), 1 × SIM
Camera:  2 MP front, 8 MP + LED rear
Sensors:  GPS, GLONASS, Galileo, light, G-sensor, Gyroskop
Battery:  5900 mAh (8 hours), hot-swappable,
10.280 mAh (13 hours) optional
Controls:  Power, home, 2 × volume, 2 × programmable
Operating temp.:  -10 ~ 50 °C
Material:  Aluminium, Magnesium
