Reliability through Accuracy
|
 |
04.07.2017

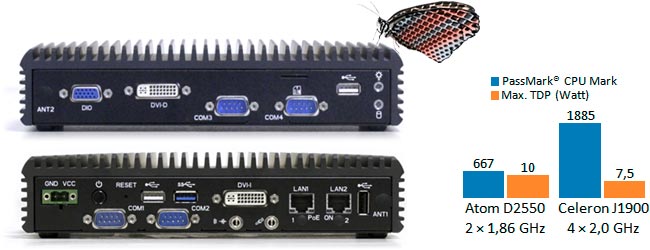

on the base of an A5 sheet, the fanless industrial PC EmbeddedLine EL1083-EC offers high-performance 4-core power for demanding industrial applications with a generous interface offering, useful options and installation options such as wall mounting or DIN rail on request:
|
|
 |
Embedded PC EmbeddedLine EL1083
The Price-Sensitive Entry into Embedded Computing
|
|
|
CPU:
|
Intel® Celeron® J1900 (4 × 2,0 GHz) Bay Trail
|
|
System memory:
|
4 GB DDR3L (max. 8 GB)
|
|
Storage:
|
min. 32 GB Solid-State-Disk or
min. 500 GB Harddisk
|
|
Interfaces:
|
2 × Gbit-Ethernet, 4 × USB (1 × USB 3.0), 4 × COM,
2 × DVI, Digital I/O, 9–36 VDC Input etc.
|
|
Expansions:
|
1 × Mini PCIe, full size
1 × CompactFlash (CFast)
|
|
Mounting:
|
Wallmount brackets (incl.)
DIN Rail TS35 (optional)
|
|
OS support:
|
Windows 7
Windows Embedded Standard 7 (WS7E)
Windows 8.1
Windows 10 IoT Enterprise
|
|
|
|
For telephone advice please do not hesitate to contact us.
We’ll be glad to make you a non-binding offer.
We look forward to your call: +49 (0)8131 33204-119
With best regards
Your TL Electronic Team
|
|
|
|
