11.10.2017

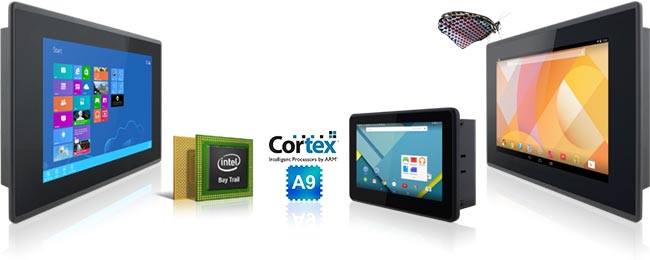

the E-Series HMI Panel PCs offer a practical and efficient solution for industrial HMI applications. The compact units offer P-Cap multi-touch screen, front IP65 protection, economical Cortex® A9 or Intel® Bay Trail multicore performance with fanless cooling system and much more:
|
|
 |
E-Series HMI Panel-PCs mit Multi-Touch
10,9 cm (4,3") to 39,5 cm (15,6") multi-touch (PCAP)
6 mm thick aluminium front panel (IP65 protected)
flat surface without dirt-collecting edges
Panelmount installation with rear holding clamps
|
|
E-Series HMI (Intel® Bay Trail)
|
E-Series HMI (Cortex® A9)
|
|
|
CPU:
|
Intel Celeron N2930 (4×1,83 GHz)
|
Freescale Cortex A9 i.MX 6 (2×1 GHz)
|
|
System memory:
|
2 bis 4 GB DDR3L
|
1 GB LPDDR3
|
|
Solid state disk:
|
min. 64 GB mSATA
|
16 GB eMMC
|
|
|
Multi-touch:
|
17,8 cm (7") 1024 × 600
25,7 cm (10,1") 1280 × 800
39,5 cm (15,6") 1366 × 768
|
10,9 cm (4,3") 480 × 272*
17,8 cm (7") 1024 × 600
25,7 cm (10,1") 1280 × 800
39,5 cm (15,6") 1366 × 768
*available on Q1 2018
|
|
|
Operating systems:
|
Windows 10 IoT Enterprise
Windows Embedded 8 / 8.1
Windows Embedded Std. 7
|
Android 4.4
Ubuntu 16.04
Linux Kernel 4.1.15
|
|
|
Interfaces:
|
2 × Gbit Ethernet, 2 × USB,
1 × Serial, 1 × HDMI
|
1 × Gbit Ethernet, 2 × USB,
1 × Serial, 1 × Micro HDMI,
CANBus, Mini USB Console, microSD
|
Show Panel PC E-Series HMI (Bay Trail) details!
Show Panel PC E-Series HMI (Cortex A9) details!
