Reliability through Accuracy 		Perfect Industrial IT: TL Electronic GmbH

21.03.2018

the extremely compact Industrial PC EAC Mini is perfectly suited as an industrial IoT gateway with energy-saving Intel® Apollo Lake CPU and extensive expansion options. Expansion modules offer a wide range of additional serial interfaces, digital I/O, WLAN and 3G/4G etc.

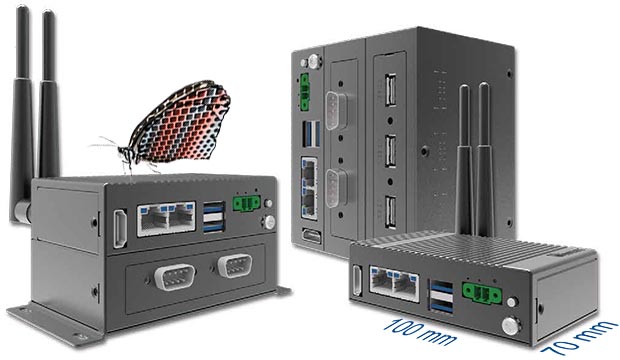

EAC Mini EACIL20


Ultra Compact IPC / IoT Gateway
for Smart Factory & Industry 4.0

• Modular layout in 1 / 2 / 3 layers
• Expansion modules for more communication
• Versatile mounting options: table/wall mount,
  DIN Rail adapter, VESA mounting plate
The EAC mini Embedded PC can be set up in 1,2 or 3 levels and offers an ideal compact computer unit for Smart Factory and industrial 4.0 applications with its compact dimensions and demand-oriented, expandable range of interfaces
CPU: Intel® Apollo Lake N3350 CPU
(2 × 1,1 GHz, 6 Watt TDP)

RAM: 4 GB LPDDR3 RAM

Solid-state drive: 32 GB eMMC (max. 128 GB) / max. 1 TB mSATA

Interfaces: 2 × Gigabit Ethernet, 2 × USB 3.0, HDMI

Expansion modules: RS-232/422/485 serial, digital I/O, CANBUS,
WWAN (3G / 4G), external antennas

OS support: Windows® 10 IoT Enterprise / Linux / Ubuntu

Unit price from 285,– €

Show EAC Mini Embedded-PC / IoT-Gateway details!
Request quote: Your enquiry …



For telephone advice please do not hesitate to contact us.
We’ll be glad to make you a non-binding offer.

We look forward to your call: +49 (0)8131 33204-119


With best regards
Your TL Electronic Team
