SPS IPC Drives: Come and visit us!
|
 |
23.10.2018
the G-WIN series stands for robust and particularly well sealed vehicle-mountable or stationary panel PCs. The industrial PCs in elegant, edgeless design and robust mechanics are equipped with brilliant True-Flat screens and Multi-Touch technology (P-CAP). They are easy to maintain and clean and prevent the ingress of dust and moisture in accordance with IP65, including interfaces:
|
|
 |

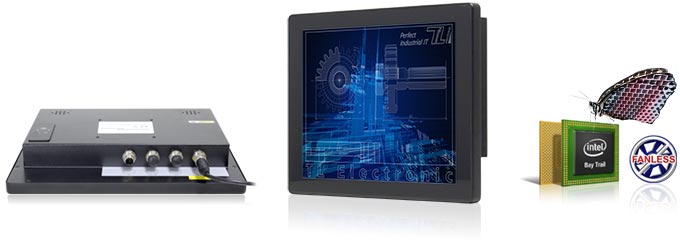

G-WIN Rugged Panel PCs
for Stationary and Vehicle-mounted Use
Multi-touch screen (PCAP)
IP65 protection incl. interfaces
shock / vibration resistant acc. MIL-STD-810F/G
flat surface without dirty edges
|
|
CPU:
|
Celeron® N2930 (4 × 1,83 GHz) Bay Trail
also with Freescale Cortex A9 i.MX6 (2 × 1 GHz)
|
|
|
Displays:
|
25,7 cm (10,1") to 38,1 cm (15")
|
|
Resolution:
|
1024 × 600 to 1024 × 768 Pixel
|
|
Touchscreen:
|
projected capacitive multi-touch (PCAP)
|
|
|
Memory:
|
2 GB DDR3 (max. 8 GB)
|
|
Solid-state disk:
|
min. 64 GB, mSATA
|
|
Interfaces:
|
Gigabit-Ethernet, USB 2.0, 1 × COM
|
|
|
Mounting:
|
VESA 75 × 75 mm / 100 × 100 mm interface
|
|
|
Operating systems:
|
Windows Embedded Standard 7 (WS7E)
Windows Embedded 8.1 Industry Pro
Windows 10 IoT Enterprise
also with Android 6.0 / Linux / Ubuntu
|
|
|
Protection:
|
IP65 all-around, cables with IP65 protected connectors incl.
|
|
Operating temp.:
|
–10 to 55 °C
|
|
Vibration:
|
1.60/1.96/2.18 g rms for XYZ/ 5-500Hz
|
|
Shock:
|
30g for 18 ms, 300 m/s²
|
Show Rugged Panel-PC G-WIN details!
Request quote: Your enquiry …
|
|
For telephone advice please do not hesitate to contact us.
We’ll be glad to make you a non-binding offer.
We look forward to your call: +49 (0)8131 33204-119
With best regards
Your TL Electronic Team
|
|
|
|
