Full power in all our industrial PC series.

Now with Core-i CPUs of the 8^th generation.

03.09.2019,

also for demanding industrial applications (e.g. image data processing), the new Intel Core-i CPUs of the 8th generation offer plenty of power reserves and are now available in all our industrial PC lines.
The industrial mainboards from Protech are long-term available and offer full support for Windows 10. An ideal setting for the 19-inch rack:

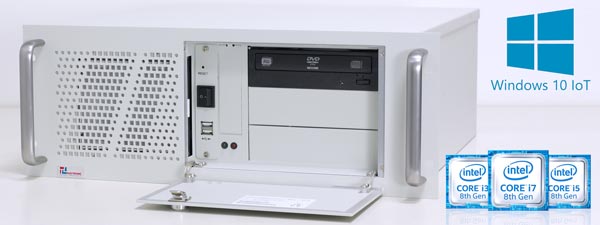

19-inch rackmount Industrial PC ClassicLine with 8th generation Core i CPUs

discover now >

According to the Passmark benchmark, the Core i3-8100 offers 40% more performance than the i3-7100.

Small step – big effect: According to the Passmark benchmark, you get almost 40% more performance with the 8th generation Core-i3.

Lockable front door on all CL45xx 19-inch industrial computers for rack mounting

The door in the rugged aluminum front of our CL450x 19-inch rack mount industrial computers is lockable against unauthorized access.

Exchangeable filter pad in front of the front fan for ClassicLine CL450x 19-inch industrial PCs

The filter pad before the front fan can be easily replaced when the front door is open in our ClassicLine CL450x 19-inch Industrial PCs.

19-inch 4U Industrial PC with exact cable routing

Internal values and “soft skills”: exact cable routing and fixing of all moving parts for optimized fail-safe operation of the industrial PCs

Long-term available quality Made in Germany: Industrial PC ClassicLine on 2U (88 mm) for the 19-inch rack with 7 slots (Low Profile)

Industrial desktop PC in a robust housing with long-term availability

Full industrial suitability even in desktop format: Robust, long-term available, housing Made in Germany, 120 mm front fan

The new industrial PC board is available with two different chipsets:

discover IPC with H310 >

discover IPC with Q370 >

CPU:		Core™ i3-8100 (4 × 3,6 GHz) Core™ i5-8500 (6 × 3,0 GHz) Core™ i7-8700 (6 × 3,2 GHz)
Chipset:		Intel® H310 or Q370
Memory:		4 GB to 64 GB DDR4 (Q370) 4 GB to 32 GB DDR4 (H310)
Storage:		min. 500 GB SATA 3.0 harddisk and/or min. 120 GB Solid-state drive RAID option (Q370)
Drives:		CD/DVD (optional)
Expansions:		up to 5 × PCI, 2 × PCI Express, 1 × Mini PCIe
Interfaces:		2 × Gigabit-Ethernet, 4–6 × USB, VGA + DVI-D, 2–4 × Serial (COM), PS/2, Audio I/O
OS:		Windows® 10 IoT Enterprise
Inner values:		• Manufacturing in in-house ESD protection zone • “Burn-in” continuous load test (min. 24 h) • Industrial grade quality components only • Long-term availability
