New modular variety

Embedded Computing in booksize format.

18.02.2020,

today we present the newest member of our embedded family: the EmbeddedLine EL1097 in a versatile booksize format.
The robust and maintenance-friendly compact industrial PC stands for maximum flexibility thanks to the large variety of interfaces and interesting options. This makes the EL1097 suitable for countless professional applications in industrial and comparable fields of application:

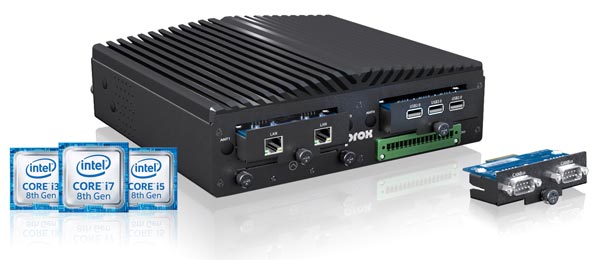

The compact EL1097 Embedded Industrial PC in booksize format can be extended with modules for additional interfaces
discover now >
Compact Industrial PC EL1097 with USB and LAN module and digital I/O
Front of the EL1097 Compact Industrial PC with additional USB and LAN modules and digital I/O
Rear side with many interfaces
Rear: The large selection of interfaces allows a variety of applications in automation, medical, retail, etc.
Interface modules to be mounted on the front of the embedded PC
The Embedded PC can be extended with add-on modules for further interfaces ...
Interface modules USB, CANBus, LPT, LAN, COM
... like USB, CANBus, LPT Parallel port, RJ45-Ethernet or serial COM interfaces.
SSD or hard disk of the industrial PC accessible from the front without tools
The hard disk or SSD is accessible without tools and easy to maintain ...
Embedded PC with maintenance-friendly accessible system components
... as well as the internal components like memory and mainboard.
Booksize industrial PC with optimum passive cooling and fail-safe design
The fanless Booksize Industrial PC is designed for optimum passive cooling and high reliability.
EL1097 Embedded PC mounted on wall and DIN rail
The EL1097 Embedded PC can be mounted with wall mounting brackets or on a DIN rail.
discover now >
CPU:   Core™ i3 / i5 / i7 (8. Generation)
OS:   Windows 10 IoT Enterprise
Ubuntu 16.04
System memory:   4 GB DDR4 (max. 32 GB)
Storage:   1 × 2.5" SATAIII harddisk or SSD
1 × M.2 Solid-state drive (PCIe or SATAIII)
WLAN:   optional (up to 4 antennas)
Interfaces:   4 × USB (3.1), 2 × COM, 2 × RJ45-Ethernet, 2 × 4K HDMI/DP, 1 × 4K HDMI (no sound), 3 × Audio I/O, 1 × SD card
optional:   Digital I/O (8in/8out), I2C 4pin
I/O‑modules optional:   • LAN: 2 × RJ45-Ethernet
• COM: 2 × serial RS-232/422/485
• USB: 3 × USB 2.0
• Parallel: 1 × DSUB 26pin
• CANBus: 2 × DSUB 9pin
Power:   9~36 VDC wide range input
Power-over-Ethernet 54 VDC
optional power remote switch
optional DC-Out (5V/12V/GND)
Operating temp.:   0° ~ 70° C
Mechanics:   • Aluminium, black
• 228 × 71 × 212 mm
• Wall or DIN-rail mounting
