Full power in all our industrial PC series.

Now with Core-i CPUs of the 9^th generation.

15.04.2020,

also for demanding industrial applications (e.g. image data processing), the new Intel Core-i CPUs of the 9th generation offer plenty of power reserves and are now available in all our industrial PC lines.
The industrial mainboards from Protech are long-term available and offer full support for Windows 10. An ideal setting for the 19-inch rack:

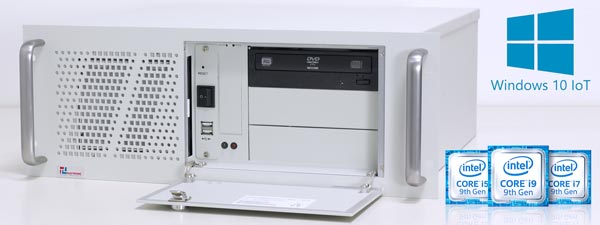

19-inch rackmount Industrial PC ClassicLine with 9th generation Core i CPUs

discover now >

Lockable front door on all CL45xx 19-inch industrial computers for rack mounting

The door in the rugged aluminum front of our CL450x 19-inch rack mount industrial computers is lockable against unauthorized access.

Exchangeable filter pad in front of the front fan for ClassicLine CL450x 19-inch industrial PCs

The filter pad before the front fan can be easily replaced when the front door is open in our ClassicLine CL450x 19-inch Industrial PCs.

19-inch 4U Industrial PC with exact cable routing

Internal values and “soft skills”: exact cable routing and fixing of all moving parts for optimized fail-safe operation of the industrial PCs

Long-term available quality Made in Germany: Industrial PC ClassicLine on 2U (88 mm) for the 19-inch rack with 7 slots (Low Profile)

The new industrial PC board is available with two different chipsets:

discover 4HE IPC with H310 >

discover 4HE IPC with Q370 >

discover 2HE IPC with H310 >

discover 2HE IPC with Q370 >

CPU:		Core™ i3-9100E (4 × 3,1 GHz) Core™ i5-9500E (6 × 3,0 GHz) Core™ i7-9700E (8 × 2,6 GHz)
Chipset:		Intel® H310 or Q370
Memory:		8 GB to 64 GB DDR4 (Q370) 8 GB to 32 GB DDR4 (H310)
Storage:		min. 500 GB SATA 3.0 harddisk and/or min. 120 GB Solid-state drive RAID option (Q370)
Drives:		CD/DVD (optional)
Expansions:		up to 5 × PCI, 2 × PCI Express, 1 × Mini PCIe
Interfaces:		2 × Gigabit-Ethernet, 6 × USB, VGA + DisplayPort, 2–4 × Serial (COM), PS/2, Audio I/O
OS:		Windows® 10 IoT Enterprise
Inner values:		• Manufacturing in in-house ESD protection zone • “Burn-in” continuous load test (min. 24 h) • Industrial grade quality components only • Long-term availability

Our capability to provide delivery is as ever unrestricted.
You are welcome to make personal appointments with us in the form of Skype, video and telephone conferences.
All work processes are carried out digitally and – adapted to the situation – also locally in the home office.
