More performance on the DIN rail: Embedded PC DR2100-P

More performance on the DIN rail

compact • versatile • performant

27.05.2020,

the DR2100-P Embedded PC was developed for practical installation on a DIN rail (DIN Rail TS 35) typical for industrial environments. Fanless 4-core performance (now with Intel Apollo Lake) and a comprehensive range of interfaces qualify the slim Industrial PC as a communication-friendly all-rounder in the control cabinet:

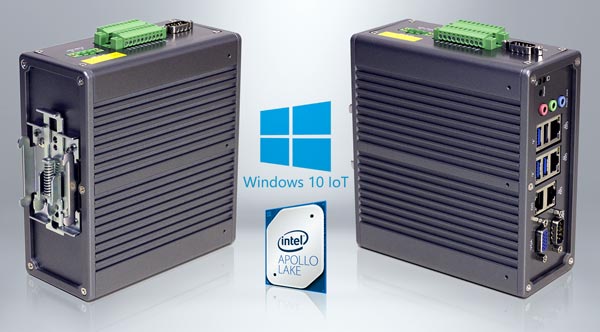

From now on, the DR2100 DIN rail-mounted Industrial PC is also equipped with Intel Apollo Lake CPU

discover now >

DIN Rail Box PC mounted on TS35 top-hat rail

The compact DIN Rail Box PC is designed for mounting on a TS35 DIN rail in control housings and control cabinets.

Intel's Apollo Lake CPU offers more performance at lower power consumption compared to the Bay Trail CPU

NEW: With the Intel N4200 CPU, the efficient DR2100-P delivers 25% more performance than its predecessor with lower power consumption.

Interfaces on the front of the Embedded Industrial PC

The numerous interfaces are all accessible from the front, making installation and subsequent modifications in the control cabinet or control housing easier.

Digital I/O ports with 9 inputs and 9 outputs on the DR2100-P Embedded PC

In addition to the digital I/O (9 × input / 9 × output), the embedded PC has numerous interfaces so that it can be easily connected to a large number of peripheral devices.

Passive cooling system with wide operating temperature range

The sophisticated passive cooling system ensures that the device operates reliably over a wide operating temperature range from -20°C to +60°C, allowing safe operation in harsh industrial environments.

DIN rail mounting kit for easy installation

The DIN rail mounting kit provides a flexible installation solution that allows users to easily and securely mount the terminal block, which is ideal for applications where space is limited.

discover now >

CPU:		Intel® N4200 (4 × 1,1 GHz) Apollo Lake
Memory:		4 GB / 8 GB DDR3L
Storage:		min. 64 GB M.2 SSD
Interfaces:		4 × Gbit-Ethernet, 4 × USB, VGA, 2 × Serial (COM), Digital I/O, Audio I/O, 9~36 V Input
W-LAN:		optional
OS:		Windows® 10 IoT Enterprise
Operating temp.:		-20° to +60° C
