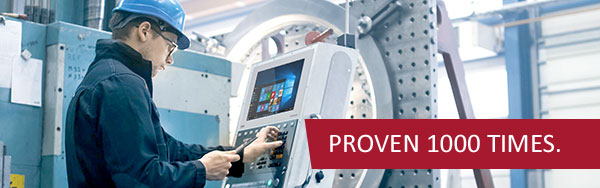

Operating and monitoring in industrial environments with built-in Panel PC

Operating & monitoring with SlimLine Panel PCs

22.07.2020,

since many years and thousands of times successfully applied in customer projects, our panel PC series SlimLine IB70 has developed to a true Ultima Ratio to let humans and machines interact with each other.

The energy-efficient “Bay Trail” CPU from Intel, proven in continuous operation, can already be described as the industry standard for simple control and operation applications – ideal for fanless, maintenance-free systems with long-term availability such as our SlimLine.

The processing, the “look and feel” and the equipment are beyond any doubt:

Display diagonal 15 and 22 inch for the front-mountable industrial Panel PCs
Depending on your application or installation requirements, you receive exactly the display diagonal you need (see 15" and 21,5").
Resistive touch screen or protection glass without touch on the industrial display
The industrial panels are equipped with a touch screen that can be operated even with rough gloves – or alternatively with protective glass instead of touch.
Panel PC front panels with rear threaded bolts
The solid 5 mm thick aluminium front with powder coating is not only incredibly resistant and offers IP65 protection against dirt and water …
Panelmount built-in fronts in aluminium and stainless steel
… it looks brilliant, too. With no less excellent look & Feel, the brushed stainless steel version makes an impression.
Front panels of the Industrial Panel PCs modified according to customer specifications
We also adapt the front panels (made in Germany) of the Panel PCs to your specific needs …
Chassis versions of the Panel PCs for VESA mounting
… as well as the robust VESA mountable chassis variant of the Panel PCs – here with barcode or RFID readers.
Display:   15" / 17" / 19" / 21.5"
resistive touch screen
or protective glass
CPU:   Celeron N2930 (4 × 1,8 GHz) fanless
OS:   Windows 10 IoT Enterprise
Memory:   4 GB / 8 GB DDR3
Storage:   from 120 GB SSD (2,5")
or harddisk
WLAN:   optional
Interfaces:   4 × USB, 3 × COM, 2 × RJ45-Ethernet,
2 × PS/2, VGA, Audio
Power:   12 VDC
Protection:   IP65 front side
Material:   Aluminium (powder coated)
steel sheet
Installation:   Panelmount front intsallation
(rear threaded bolts)
  • Our capability to provide delivery is as ever unrestricted.
  • You are welcome to make personal appointments with us in the form of Skype, video and telephone conferences.
  • All work processes are carried out digitally and – adapted to the situation – also locally in the home office.
