Multitouch HMIs and displays with IP65 protection for stationary or vehicle-mounted applications. Rugged. Elegant. Versatile.
|
|
|
Rugged. Elegant. Versatile.
Multitouch HMIs and Displays with IP65 Protection for stationary or vehicle‑mounted applications
|
|
|
|
|
|
|
26.07.2022,
your projects can choose from a whole range of economically interesting HMI and display solutions with the proven GS and GC series. The slim, elegantly designed devices feature high-quality workmanship and offer reliable protection against adverse operating conditions.
With the heavy-duty HMI panels in a wide variety of configuration options (see below), you can implement an infinite number of demanding applications:
Highlights:
| • |
Protection class IP65 all around (GS series) or frontside (GC series) |
| • |
P-CAP multi-touch screens from 7" to 24" |
| • |
Fanless cooling system – maintenance-free and fail‑safe |
| • |
Robust but elegant design |
| • |
Shock and vibration resistance acc. MIL‑STD‑810F/G |
|
|
The GS and GC series in action:
|
|
|
|
|
|
|
|
The flat aluminum panel PCs and ‑displays in elegant edge-to-edge design are easy to clean and prevent dust or liquid from entering the device.

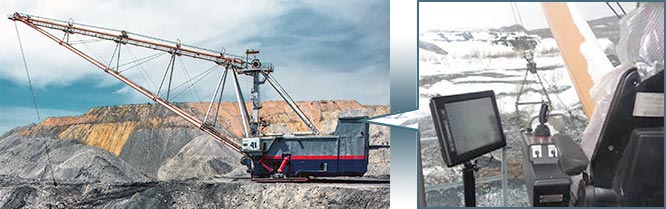

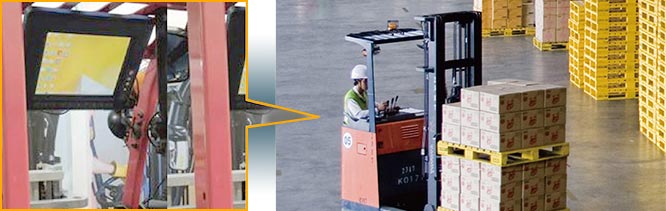

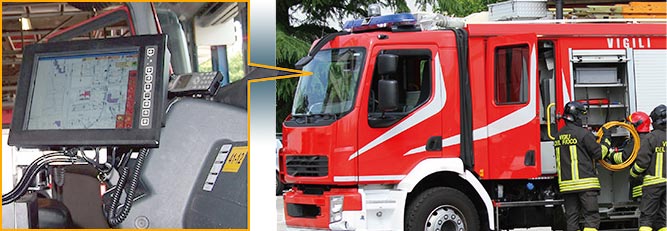

HMIs mounted on vehicles and machinery are subject to vibration and shock. The GS/GC series are tested and protected according to MIL-STD-810F/G.
The rugged HMI series are ideally suited for applications in the industrial environment, e.g. for machine control …
… or for permanent use as HMI terminal thanks to the high processing quality and long availability.
Protection class IP65 explained: The 6 stands for complete protection against the ingress of dust. The 5 means that the device is protected against splashing water from all directions. (The GS series offers IP65 all-around.)
With front IP65 protection against dust and moisture, the HMI panel PCs and displays of the GC series are also equipped for adverse operating environments.
With its flat, easy-to-clean surface and elegant design, the GC series also cuts a fine figure in the medical sector.
The long-term available and cost-efficient HMIs are also suitable for semi-industrial use, for example in the control room.
|
|
|
|
|
|
Technical data GS and GC series
|
|
Display:
|
7" / 10" / 12" / 15" / 19" / 22" / 24"
Multi-touch screen (PCAP)
|
|
CPU:
|
Intel® Core i3 / i5 / i7 (9th Generation)
Intel® Celeron N2930 / N4200
Cortex A9 (2 × 1 GHz)
none (purely passive display)
|
|
Operating system:
|
Windows 10 IoT Enterprise /
Android / Linux / Ubuntu
|
|
SSD:
|
16–128 GB (or more)
M.2 / eMMC / mATA
|
|
Mounting:
|
VESA interface rear side or
Panelmount installation from front
|
|
Power:
|
12 VDC or
Power-over-Ethernet (PoE) optional
|
|
Protection:
|
IP65 all-around (GS series)
IP65 front side (GC series)
Shock/drop/vibration MIL‑STD‑810F/G
|
|
Operating temp.:
|
-15 ~ 55 °C or 0 ~ 50 °C
|
|
|
|
| • |
