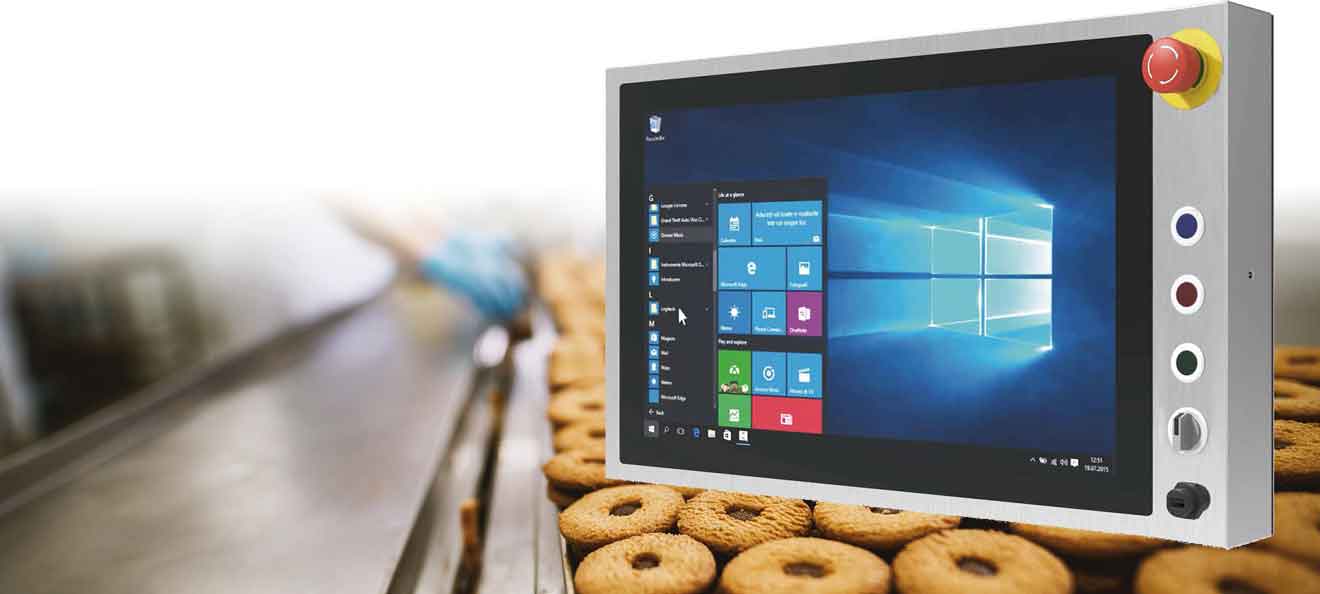

Full control in one system: stainless steel panel PCs for food and chemical industries
|
|
|
Full control in one system
Stainless steel panel PCs for food and chemical industries
|
|
|
23.05.2023,
with the Stainless B series panel PCs, you can enjoy the reliability of our stainless steel systems, which have been tried and tested for many years, with even greater ease of use:
Emergency stop and flat pushbuttons integrated in the robust and corrosion-protected stainless steel housing bring control and signaling directly to the work area. Unnecessary handling or navigating through HMI screens are eliminated - work processes are improved and thus safer.
Your installation costs and wiring times are significantly reduced, because the connection to the systems to be controlled is extremely simple. The signal lines are IP65-protected at the rear and suitable cables are supplied.
|
|
|
|
|

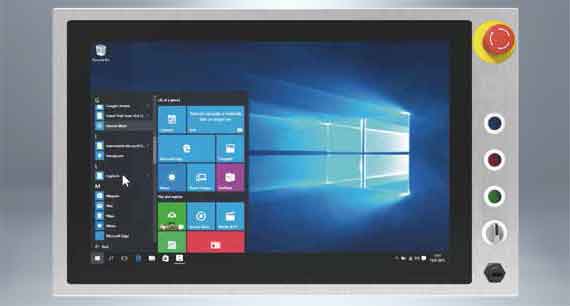

The 21.5" PCAP multi-touch with a completely flat front without dirt edges is ideal for workplaces that have high hygienic requirements and are cleaned frequently.

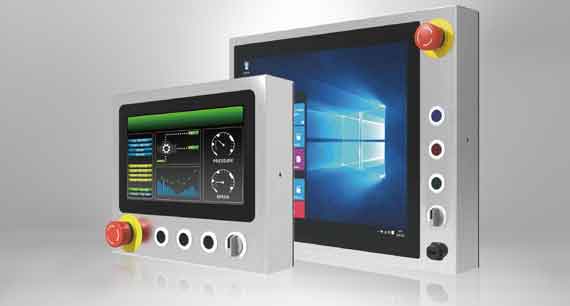

Interesting alternatives in various display sizes as well as a purely passive stainless steel monitor offer you more flexibility, e.g. in confined spaces.

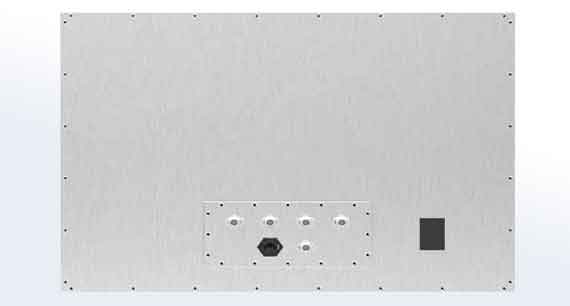

All interfaces are implemented via IP65-protected M12 connections - also for the emergency stop and the three front buttons. Suitable cables are included in the scope of delivery.

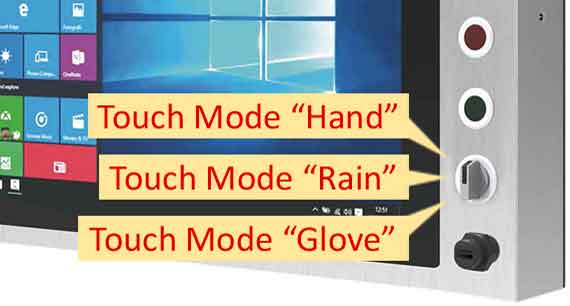

The easy-grip rotary switch allows easy switching between different touch modes for hand, rain and glove operation. (optionally other assignment possible)

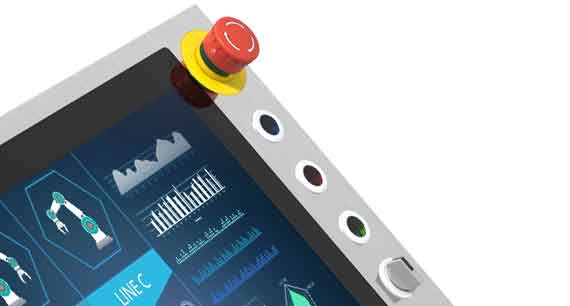

Emergency stop and flat pushbuttons bring control and signaling directly to the work area.

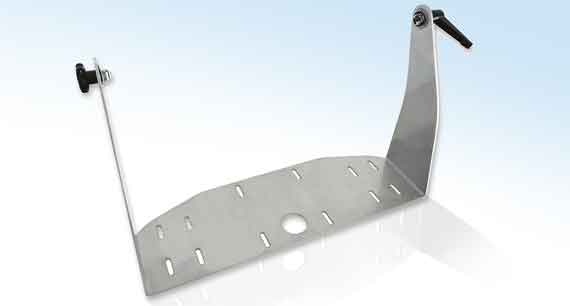

Clever accessory: the stainless steel tiltable bracket for stable mounting.
|
|
Configuration Stainless B-Series
|
|
Display:
|
15" / 19" / 21,5"
PCAP Multi-Touchscreen
|
|
CPU:
|
Intel® Celeron N2930 (4 × 1,83 GHz)
|
|
OS Support:
|
Windows 10 IoT Enterprise
|
|
RAM:
|
4-8 GB DDR3
|
|
Storage:
|
min. 128 GB SSD mSATA
|
|
WLAN:
|
optional
|
|
Interfaces:
|
1 × RJ-45, 1 × COM, 2 × USB,
CN1 + CN2 front button signal
|
|
Protection:
|
IP65 all-around
|
|
Material:
|
Stainless steel, brush finished
|
|
Mounting:
|
VESA mounting interface,
Support arm, stand, wall mounting
|
|
|
|
|
|
|
|
| • |
