No compromise on safety and durability with IP69K: Absolute protection in moisture, dirt, high pressure & steam jet cleaning with high temperatures.
͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏
|
|
|
No compromise on safety and durability with IP69K:
Absolute protection in moisture, dirt, high pressure & steam jet cleaning with high temperatures
|
|
|
Discover IP69K Panel PCs
|
|
20.06.2023,
Projects in the food, chemical and pharmaceutical industries, medical technology, process engineering, plant construction, etc. make high hygienic, mechanical and optical demands – a challenge for any IT hardware, e.g. to withstand stressful cleaning processes. Stainless steel panel PCs with IP69K protection are the ideal choice here and are perfect for controlling the processing of raw materials / ingredients, for example, in final packaging, or for ensuring the quality and safety of the end product.
Made entirely of stainless steel, the systems are absolutely dust-tight and protected all around against dirt and water. The housings are corrosion and liquid resistant – perfect for frequent cleaning and aggressive disinfection.
Talk to one of our experts to find the exact device that meets all your requirements and standards!
|

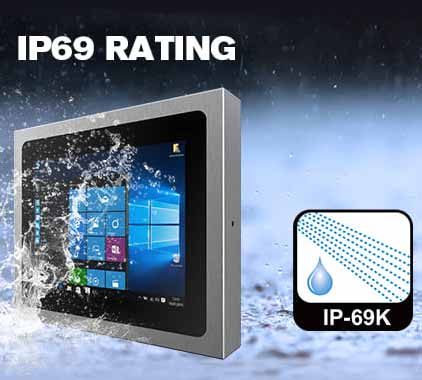

The IP code (Ingress Protection) defines the degree of protection of enclosures in the international standard IEC 60529. IP69K means: The housing is dust-tight and protected against water jets from different angles – even at high pressure (up to 30 bar) and high water temperatures (up to 80 °C).
|
AISI / SUS 316 Stainless Steel:
Better corrosion resistance, tensile strength and acid resistance than standard AISI 304 – perfect for aggressive cleaning processes and environments.

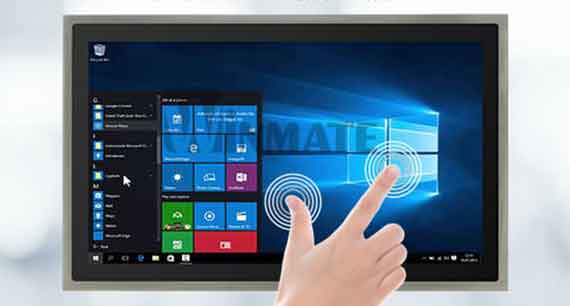

The PCAP multi-touch can also be operated with gloves, has a flat front without dirty edges and is ideal for workplaces that have high hygienic requirements and are cleaned frequently.

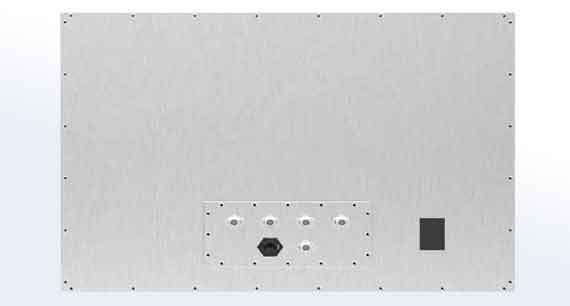

All interfaces are implemented at the rear via fully protected M12 connectors. The appropriate connection cables are included in the scope of delivery.

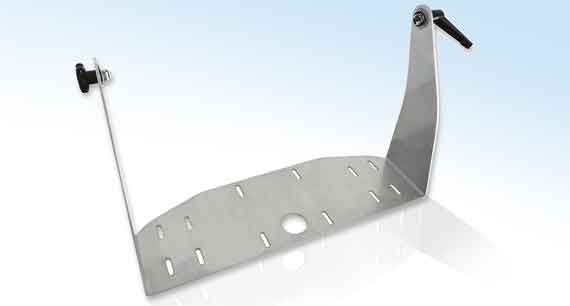

Clever accessory: the stainless steel tiltable yoke mount for stable installation as an alternative to VESA mounting systems.
|
|
High-quality stainless steel is indispensable in applications with stringent hygienic, mechanical or visual requirements. The systems have exceptional chemical and mechanical resistance …
… and, thanks to IP69K protection, are ideal for the food and beverage industry, the packaging industry, the manufacture of sanitary articles, industrial automation, the chemical industry, logistics and much more.
|
|
Discover IP69K Panel PCs
|
|
Configuration IP69K Panel PCs
|
|
Display:
|
15" / 19" / 21.5"
PCAP multi-touch-screen
|
|
CPU:
|
Intel® Core i5-7200U (2 × 2,5 GHz)
|
|
OS Support:
|
Windows 10 IoT Enterprise
|
|
RAM:
|
4-16 GB DDR4
|
|
Storage:
|
from 128 GB M.2 SSD
|
|
Interfaces:
|
1 × RJ-45 LAN, 2 × USB, 1 × COM
|
|
Protection:
|
IP69K all-around
|
|
Material:
|
SUS 316 / AISI 316 stainless steel, brush finished
|
|
Mounting:
|
VESA mounting interface,
support arm, stand, wall mounting
|
|
|
|
| • |
