Operate drones, machines and robots with G101TG Ground Control Station
͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏
|
|
|
Operate drones, machines and robots with G101TG Ground Control Station
|
|
Discover G101TG now
|
|
|
25.06.2024,

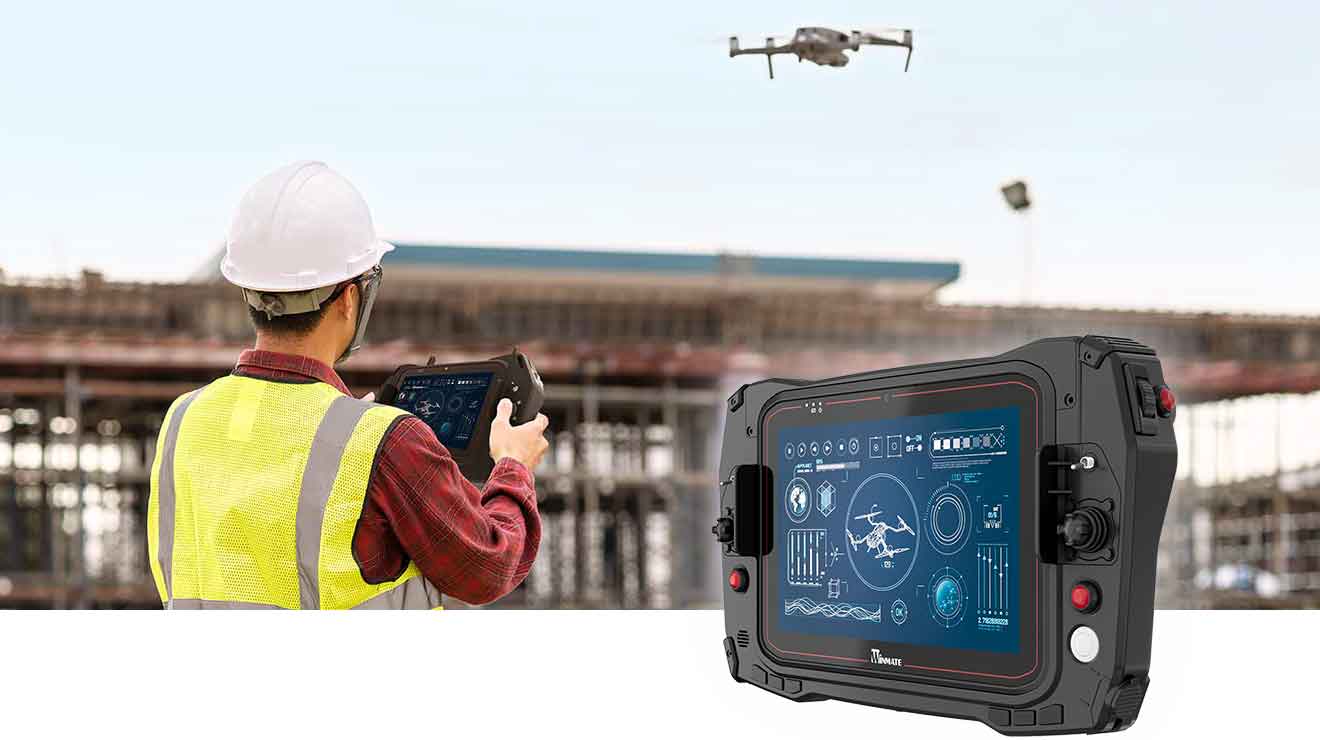

the Winmate Ground Control Station is a powerful and reliable solution for UAV operations and enables you to realize countless applications in robotic control, industrial inspection, security surveillance, agriculture, public inspections, intelligent air patrols, disaster response, site inspections and building maintenance.
With its intuitive user interface, advanced flight control and monitoring capabilities, seamless payload management, reliable connectivity and robust design, the Winmate GCS enables operators to efficiently and reliably control and monitor UAV missions.
Highlights:
| • |
10,1" high brightness sunlight readable touchscreen |
| • |
Intel Core i5-1135G7 “Tiger Lake” CPU |
| • |
All-weather, dust- and waterproof IP65 design |
| • |
Shock, vibration and drop resistance (MIL-STD-810H) |
| • |
Video SW decoder with low latency for high-resolution real-time video playback |
| • |
Supports WLAN, Bluetooth, optional 4G/5G |
| • |
Embedded TPM IC and optional OPAL SSD |
| • |
Removable second battery and a battery life of over 10 hours |
|
|

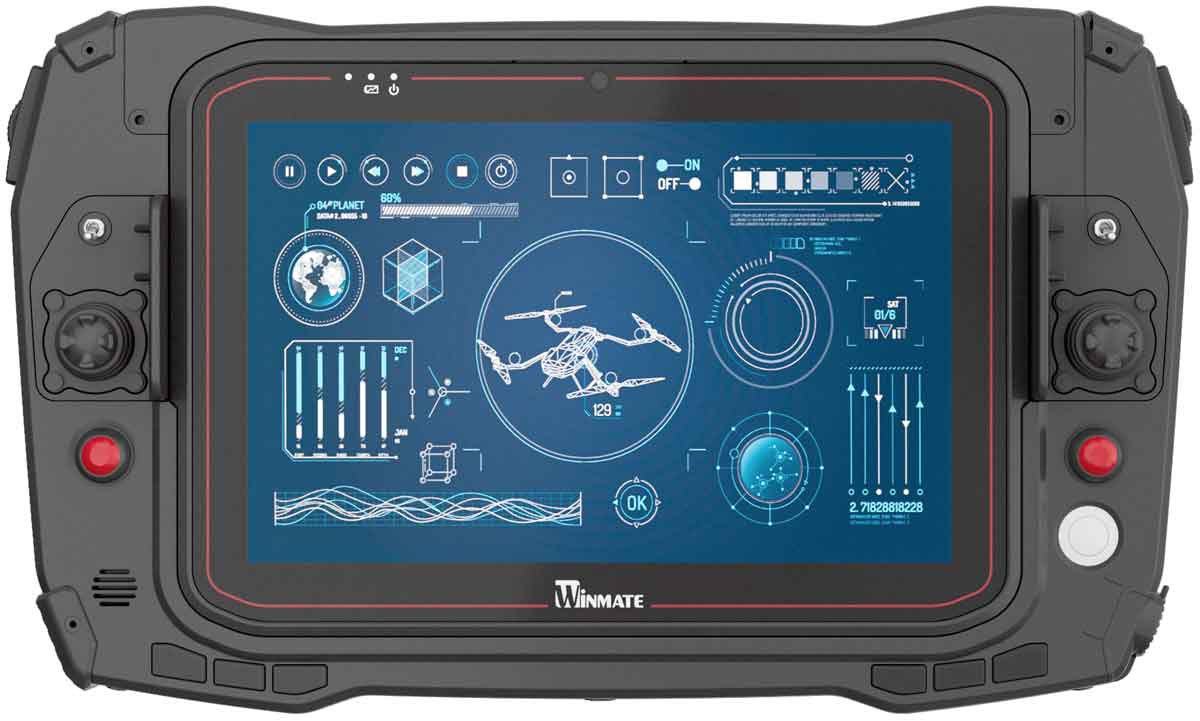

The rugged handheld controller focuses on ergonomics and robust design. With powerful processors for stable and advanced performance, the controllers are built tough for various applications.
Winmate is able to deliver customized versions, e.g. with changing joysticks, switches, buttons and branding tailored to your specific application.
Are you looking for a mobility solution for your company? Our experts will be happy to advise you!
|
|
|
Discover G101TG now
|

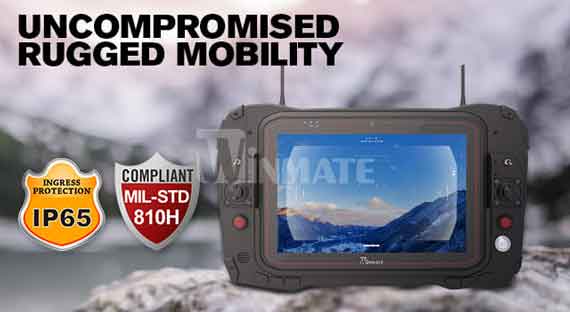

The G101TG is based on Winmate's most reliable rugged industrial tablets. The handheld controllers are ruggedly built and tested to US defense standard MIL-STD 810H and are IP65 rated for remote control in even the harshest environments.
|
In addition to the embedded TPM 2.0, the G101TG controller also offers an optional OPAL SSD to ensure that sensitive data is secure and protected from unauthorized access. By embedding these functions, it is compact and easy to use.
|
The ground control station has a removable 10-hour rechargeable battery. The exceptional reliability and maneuverability also provides an outstanding flying experience. Pilots can concentrate on capturing aerial images without having to worry about performance limitations.
|
This powerful and practical tool supports optional WIFI, BT and 4G/5G connectivity. Thanks to its versatility and connectivity options, users can take advantage of live video transmissions, remote control and internet access while flying their drone.
|
|
Discover G101TG now
|
|
|

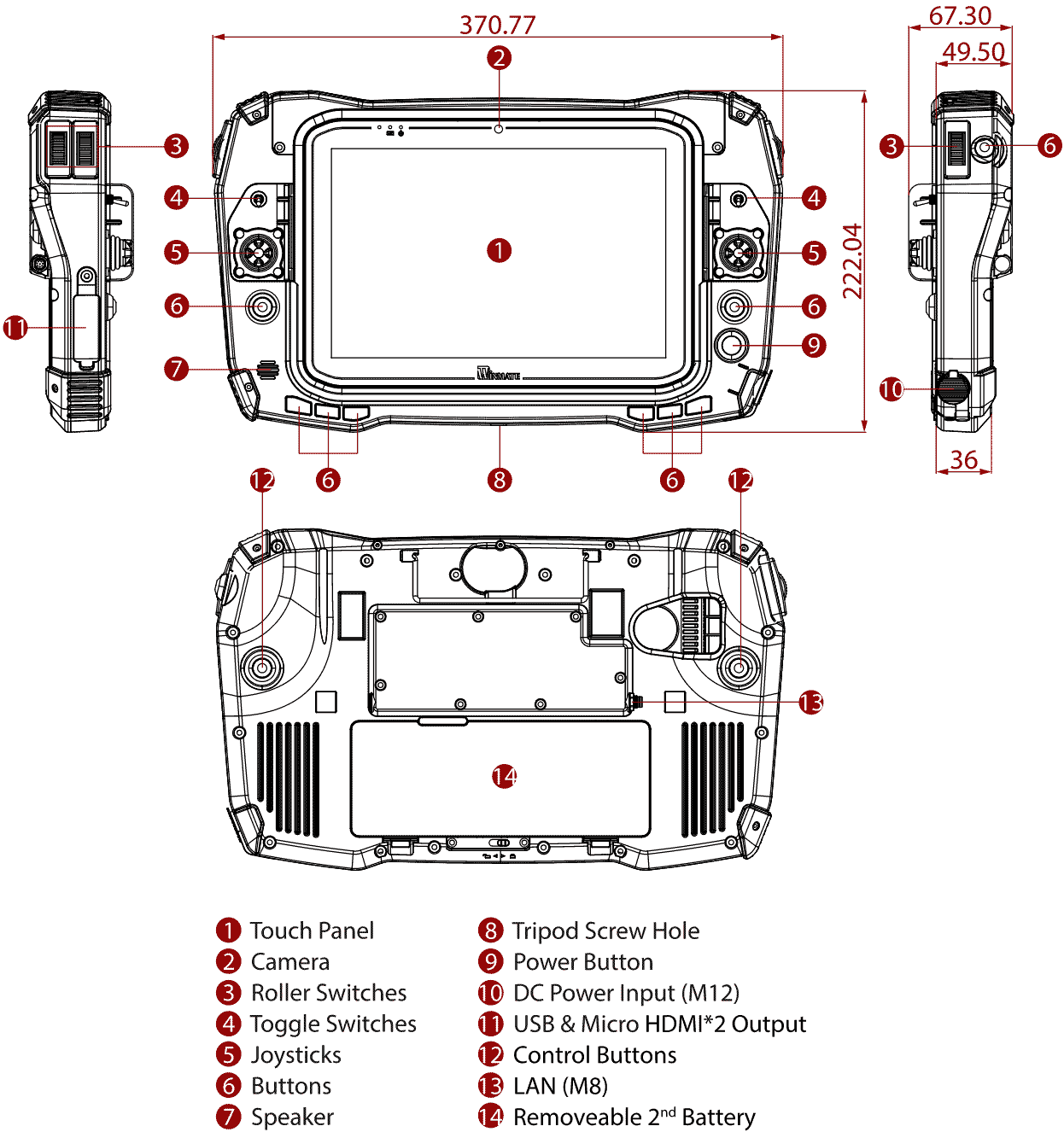

Specifications Ground Control Station G101TG
|
|
Display:
|
10.1" / 1920 × 1200,
800 cd/m² brightness, 800:1 contrast,
“Optical Bonding” for sunlight readability
|
|
Touch:
|
projected-capacitive multi-touch,
glove, rain and stylus mode
|
|
CPU:
|
Intel Core i5-1135G7 (4 × 2,4 GHz)
|
|
OS Support:
|
Windows 10/11 IoT Enterprise
|
|
Memory:
|
4 GB DDR4 (max. 32 GB)
|
|
Storage:
|
128 GB SSD (max. 2 TB)
|
|
Communication:
|
WLAN, Bluetooth, 4G/5G (optional)
|
|
Sensors:
|
GPS, GLONASS, light, G-sensor, gyroscope
|
|
Camera:
|
2 MP front
|
|
Interfaces:
|
USB 2.0
2 × Mirco HDMI out
Giga LAN M8
19 V/DC in
|
|
Audio:
|
1 × speaker
|
|
Controls:
|
Power, 18 × function keys
|
|
Battery:
|
3500 mAh internal + secondary battery
|
|
Dimensions:
|
37 × 22 × 7 cm
|
|
Weight:
|
2,4 kg
|
|
Security:
|
TPM 2.0, Kensington lock,
SOTI MobiControl compliance
|
|
Protection:
|
IP65 against dust and water
|
|
Shock/vibration/drop:
|
acc. MIL-STD-810H
|
|
Operating temp.:
|
-10 ~ 50 °C
|
|
|
|
|
|
|
|
|
|
|

|
|
|
|
