W22IAD7T-GPA3
HMI (Human Machine Interface), Edge AI Panel PCs
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

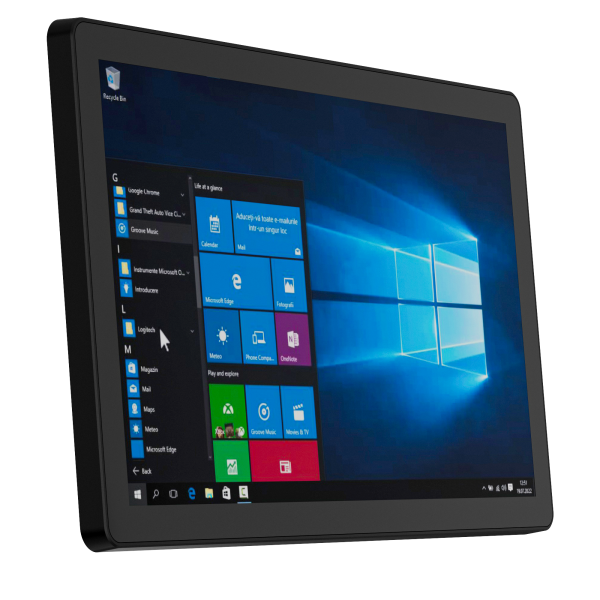

01-Edge-AI-Panel-PC-W22IAD7T-GPA3.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number:
23221225
gross price: €0.00
Price on request
gross price: €0.00
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 23221225 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W22IAD7T-GPA3 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 53,02 |
| dimensions height: | 32,17 |
| dimensions depth: | 7,05 |
| weight: | 7 |
| Material housing: | Aluminium / aluminium |
| protection front: | IP65 |
| colour: | schwarz / black |
| controls: | 5 Keys: Power, 4x Function |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 80-264 V/AC |
| HDMI: | 1 x HDMI 2.0 (optional) |
| DisplayPort: | 1 x DP 1.4 |
| USB: | 4 x USB 3.2 Gen.2x1 (Type-A) |
| Audio: | Mic-In, Line-Out |
| chipset: | Intel R680E |
| CPU Typ: | Core i5 |
| CPU Model: | 12500TE |
| CPU 64bit: | Ja |
| CPU speed: | 1,9 GHz |
| CPU cores: | 6 |
| CPU socket: | FCLGA1700 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 64000 |
| RAM Number of benches: | 2 |
| RAM Typ: | SO-DDR5 |
| RAM speed: | 4800 |
| Grafik Controller: | Intel UHD Graphics 770 |
| safety: | TPM 2.0 |
| Expansion slots: | 2 x M.2 slot, 1 x PCIe 5.0 (x16) slot |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet Controller : | 2 x Intel Ethernet Controller |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
