DL4501 - H610
Industrial Automation, Desktop Industrial PC

Industrial PC for professional desktop use Desktop industrial computer in sturdy steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Made in Germany Long-term availability

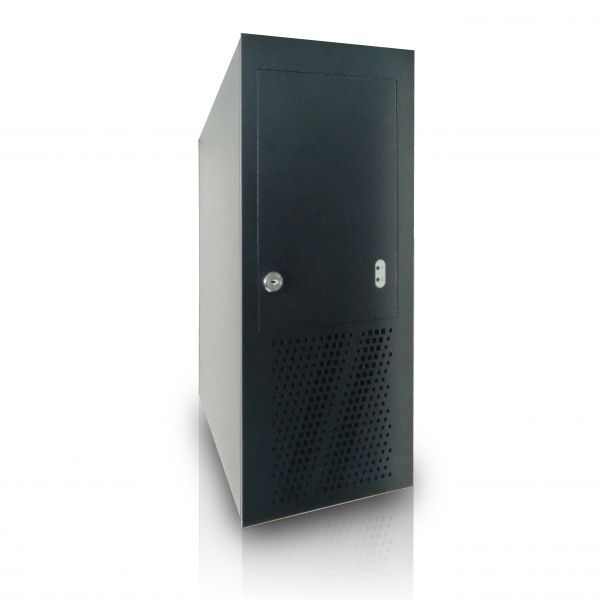

08-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
08-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
04-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
04-Desktop-Industrie-PC-Front -DL4501.jpg / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC

Order number: 14900322
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • DeskLine Industrie PC
  • langzeitverfügbare Gehäuse made in Germany
  • volle Industrietauglichkeit
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 14900322
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: TL Electronic
series name: DeskLine
Manufacturer item number: DL4501
mechanics: Desktop
dimensions width: 17,65
dimensions height: 42,7
dimensions depth: 45,1
weight: 11,1
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP30
protection device: IP20
colour: RAL 9005 Tiefschwarz / Jet black
controls: 2 Keys: Power, Reset, Status-LEDs
cooling: aktiv / fan cooling
Mainboard form factor: ATX
chipset: Intel H610
CPU Typ : Core i3
CPU Model : 13100
CPU 64bit : Ja
CPU speed: 3,40 GHz
CPU cores: 4
CPU socket: FCLGA1700
RAM size (MB): 8192
RAM max. size (MB): 65536
RAM Number of benches: 2
RAM Typ : DDR4
PCI Express x16 : 2
PCI Express x1 : 1
PCI : 4
Grafik Controller: Intel UHD Graphics 730
safety: TPM 2.0
connections SATA: 4
USB internal connections: 2x USB 2.0
Connections Serial internal: 4x RS-232
SSD design: 2.5"
SSD max. number: 1
SSD capacity (GB): 256
alternate Caddies: Optional / optional
CD/DVD-Writer : Optional / optional
Display : 1x HDMI, 1x VGA, 1x DP
USB : 4x USB 2.0, 4x USB 3.2(2x Gen1, 2x Gen2)
LAN : 2x RJ45 - 10/100/1000 Mbps
serial: 2 x RS-232/422/485
PS/2: 1x Mini-DIN
controls: Power On/Off
voltage input AC: 100 - 240 V/AC
power adapter: 400 Watt ATX, PS/2, intern
operating temperatur min.: 0°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
