DL4501 - Q370
Industrial Automation, Desktop Industrial PC, Industrial PC
Industrial PC for professional desktop use Desktop industrial computer in sturdy steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Made in Germany Long-term availability

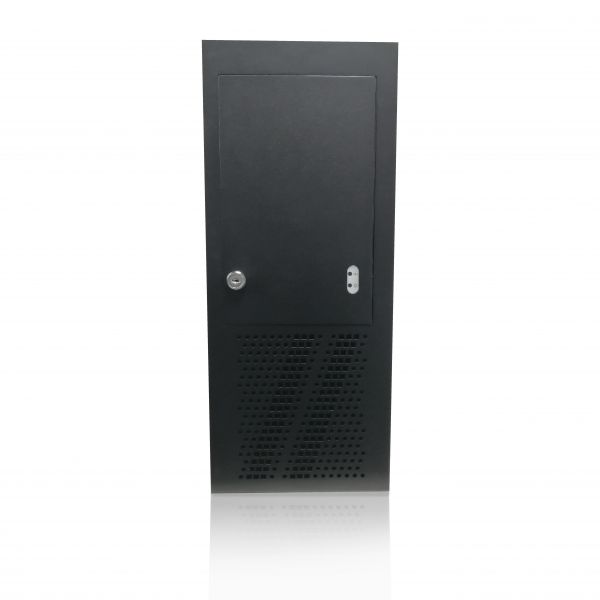

01-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
08-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
Order number:
14900299
gross price: €1,517.25
€1,275.00 *
gross price: €1,517.25
Prices plus VAT plus shipping costs
Delivery time: upon request
SPEZIFIKATIONEN
| Order number: | 14900299 |
| Manufacturer: | TL |
| Matchcode manufacturer: | nein |
| Manufacturer: | TL Electronic |
| series name: | DeskLine |
| Manufacturer item number: | DL4501 |
| mechanics: | Desktop |
| dimensions width: | 17,65 |
| dimensions height: | 42,7 |
| dimensions depth: | 45,1 |
| weight: | 11,1 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP30 |
| protection device: | IP20 |
| colour: | RAL 9005 Tiefschwarz / Jet black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| cooling: | aktiv / fan cooling |
| Mainboard form factor: | ATX |
| chipset: | Intel Q370 |
| CPU Typ : | Core i3 |
| CPU Model : | 9100 |
| CPU 64bit : | Ja |
| CPU speed: | 3,60 |
| CPU cores: | 4 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR4 |
| RAM speed: | 2400 |
| PCI Express x16 : | 1 |
| PCI Express x4 : | 3 |
| PCI Express x1 : | 1 |
| PCI : | 2 |
| Grafik Controller: | Intel HD Gen 9 Graphics |
| Ethernet Controller: | Intel PHY 219 LM + Intel LAN 211 AT |
| safety: | TPM 2.0 |
| connections SATA: | 6 |
| USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
| Connections Serial internal: | 6x RS-232/422/485 |
| Mini-PCIe-slot: | 1 |
| Digital I/O : | Ja / yes |
| SSD design: | 2.5" |
| SSD max. number: | 2 |
| SSD capacity (GB): | 256 |
| RAID-System : | Ja / yes |
| alternate Caddies: | Optional / optional |
| CD/DVD-Writer : | Optional / optional |
| Display : | 2x DisplayPort, 1x VGA, 1x eDP |
| USB : | 4 x USB 3.1, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 2 x RS-232/422/485 |
| PS/2: | 1x Mini-DIN |
| controls: | Power On/Off |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
