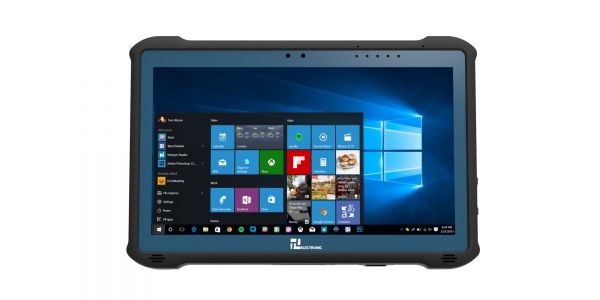

M116TG
Industrial Automation, Rugged Industrial Tablets

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810H) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Keyboard not included in delivery

01-Front-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Front-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Front-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
03-Front-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
05-Front-right-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
05-Front-right-M116TG.jpg / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets

Order number: 25110017
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810H
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 25110017
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M116TG
mechanics: Rugged Tablet PC
dimensions width: 30,1
dimensions height: 20,2
dimensions depth: 2,25
weight: 1,5
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 11,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 850 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Core i5
CPU Model: 1135G7
CPU speed: 2,40 GHz
CPU cores: 4
RAM size (MB): 8192
RAM max. Größe (MB: 32768
RAM Typ: SDRAM-DDR4
SSD design: M.2
SSD capacity: 128
SSD number: 1
WLAN: Ja / yes
Bluetooth: Ja / yes
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Barcode: Optional / optional
RFID: Optional / optional
Video: 1x Mirco HDMI (optional)
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
LAN: 1x RJ45 - 10/100 Mbps
Card Slot: 1x Micro SDXC Slot, 1x Micro SIM Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 4 Keys: Power, Volume, Fn1, Fn2
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810H Method 516.8 Procedure I
Vibration: MIL-STD-810H Method 514.8 Procedure I
Drop: MIL-STD-810H Method 516.8, 3 ft
voltage input DC: 19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 10.8V, 4700 mAh Li-Polymer Battery (3S2P
battery Hot-Swap: Ja / yes
