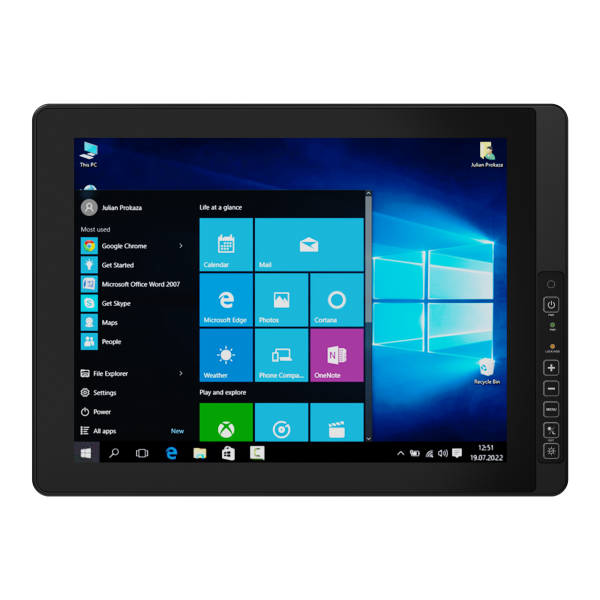

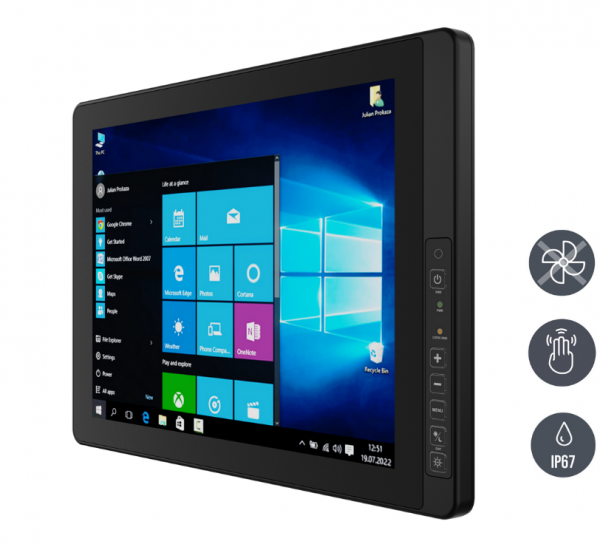

R15IE3S-67C3-P(HB)
Industrial Automation, Multitouch-Screen, Projected-Capacitive (PCAP)

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810G Designed for industrial applications in continuous operation Long-term availability

02-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
04-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
04-G-WIN-Panel-PC-R15IE3S-67C3-P(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Order number: 23152582
gross price: €0.00
Price on request

Prices plus VAT plus shipping costs

Delivery time: upon request

HIGHLIGHTS
  • Shock: MILSTD810G Method 516.6 Procedure I
  • Vibration: MILSTD810G Method 514.6 Procedure I
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Download PDF datasheet

SPEZIFIKATIONEN
Order number: 23152582
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: G-WIN-Serie
Manufacturer item number: R15IE3S-67C3-P(HB)
mechanics: Chassis (VESA-Mounting)
dimensions width: 37,94
dimensions height: 27,84
dimensions depth: 5,8
weight: 3,8
Material housing: Aluminium / aluminium
Material Front : Kunststoff / plastic
protection device: IP67
colour: schwarz / black
controls: 7 Keys: Power, 6x Function
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 1000 cd/m²
contrast: 2000:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 9-36 V/DC
external power supply: optional
USB: 2 x USB 2.0 (M12 type)
serial: 1 x RS-232 (M12 type)
LAN: 1x RJ45 - 10/100/1000 Mbps (M12 type)
CPU Typ: Celeron
CPU Model: N6211
CPU 64bit: Ja
CPU speed: 1,2 GHz
CPU cores: 2
CPU socket: FCBGA1493
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 3200
Grafik Controller: Intel UHD Graphics for 10th Generation
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating temperatur min.: -10°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
